Network Time Traveler

Network Time Traveler is a tool to create and restore the intended configured state of the network. Time Traveler exercises version control on the configured objects in Verity. Device configurations are derived from these objects, therefore the entire network configuration can be recalculated when the Time Traveler function is used. Verity does not backup the actual device configurations.

Manually Create Backup

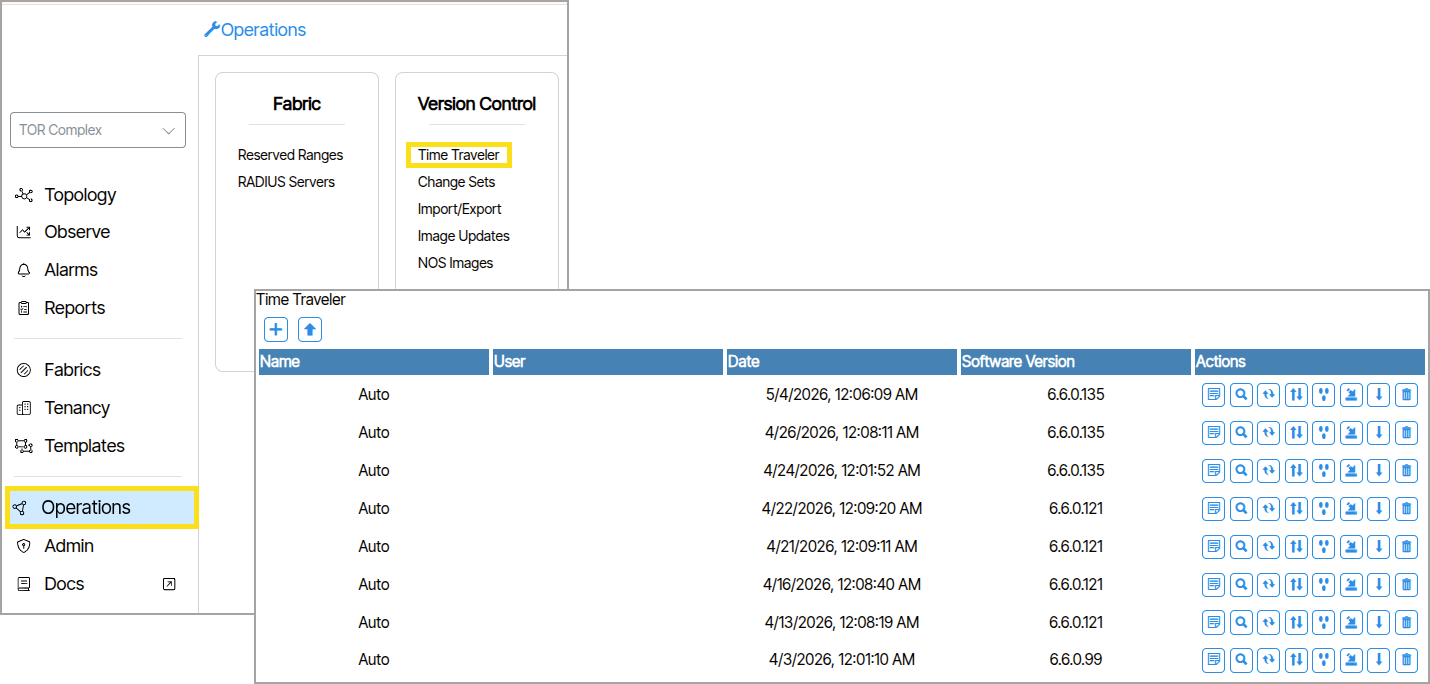

1. Click the Operations () icon from the world view.
2. In the tabs that appears select Time Traveler .
3. Click the Create a New Network Time Traveler Backup button creates a new backup.

Revert State Using Time Traveler

1. Click the Operations () icon from the world view.
2. In the tabs that appears select Time Traveler .
3. Determine the the backup to revert to (Select by date).
4. Click the corresponding Restore Network Time Traveler Backup icon () .

Time Traveler Actions

Icon	Name	Function
	Compare Current	Compares the state of the backup to the current network state.
	Download	Download the backup.
	Compare	Compare to previous backup.
	Delete	Delete the backup.
	Activate	Activate the backup.
	Edit Note	Write and/or view note of backup.
