Tenants🔗

Tenants are the fundamental building block of data center overlay traffic. A Tenant is composed of several elements, including Services, a Layer 3 instance, and a BGP gateway to enable communication outside the data center. Proper configuration of Tenants is crucial to setting up a data center instance. This document offers general instructions on how to create and configure Tenants.

For detailed options and further configurations, the user should be experienced in data center architecture and configuration and refer to Dell SONiC documentation to understand the capabilities and complex features.

Creating Tenants🔗

  1. From the World View, click the Tenants icon .

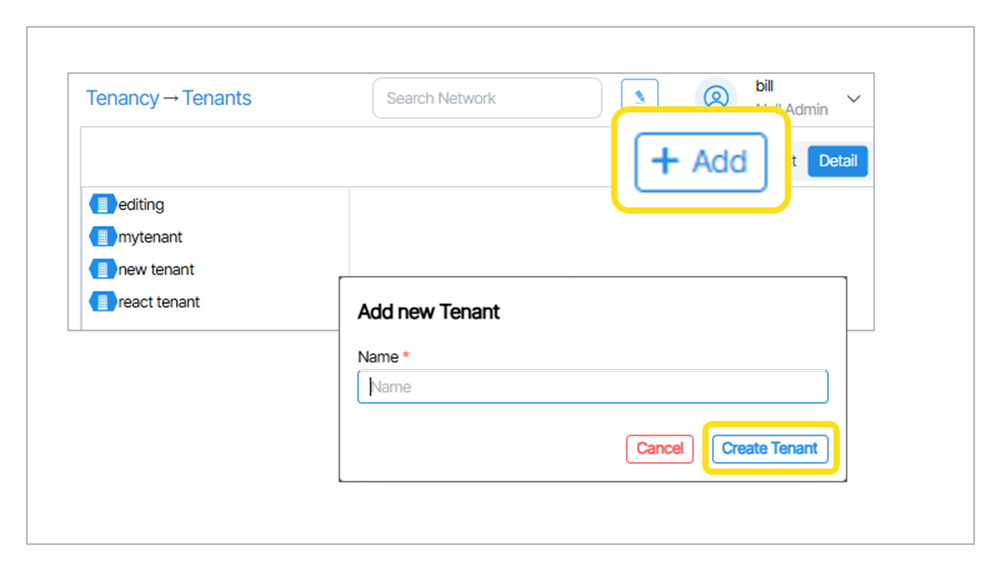

  2. To create a Tenant, click the Add Tenant button () .

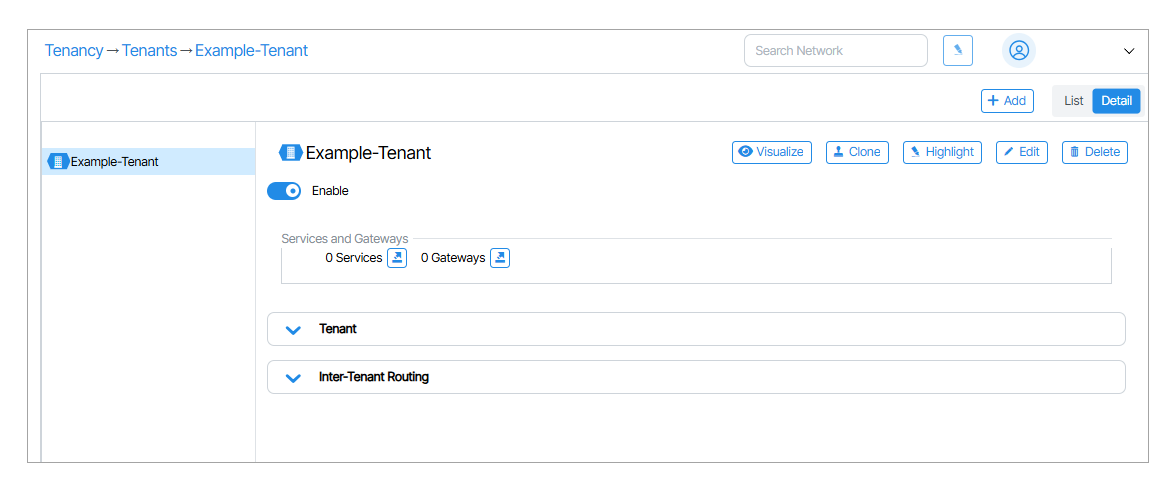

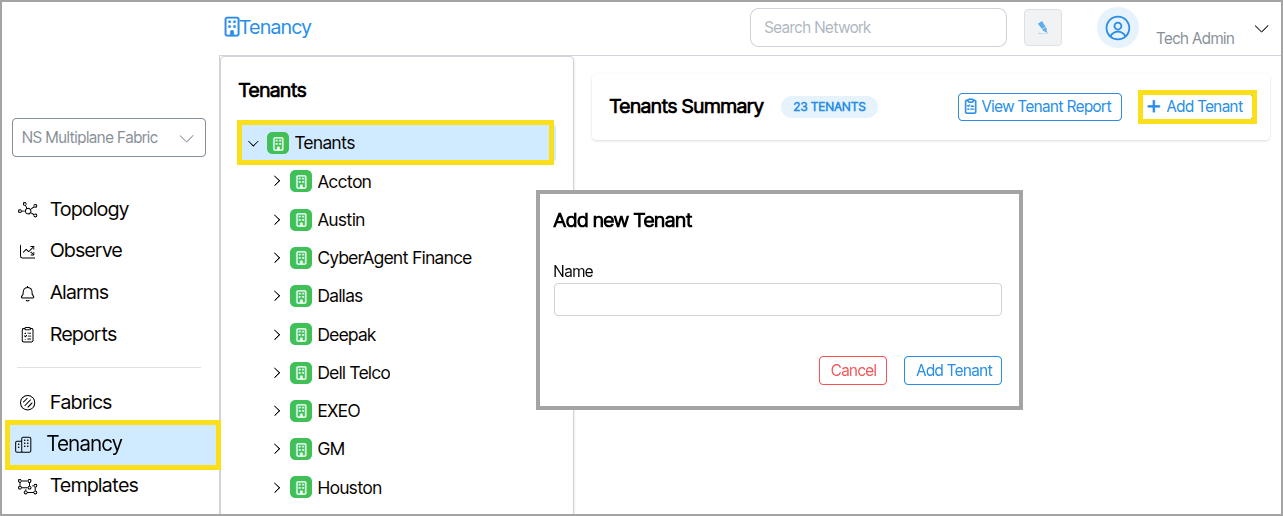

  3. Type the name of the Tenant and save it by clicking the Save button ().

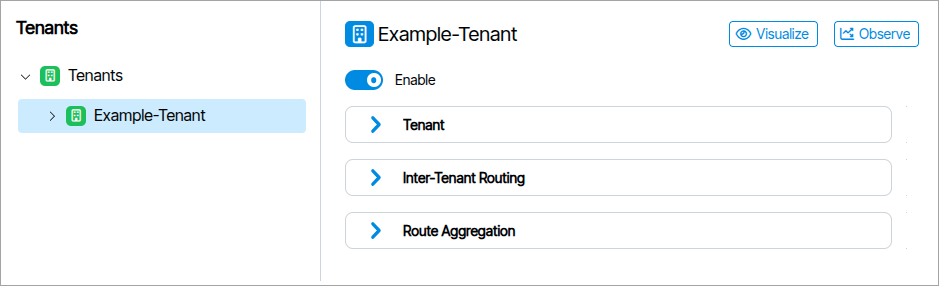

  4. After you create the Tenant, the Tenant section automatically creates three sub-sections. These are Tenant Slice, Services and BGP Gateways.

Tenant Layer-3 Configuration🔗

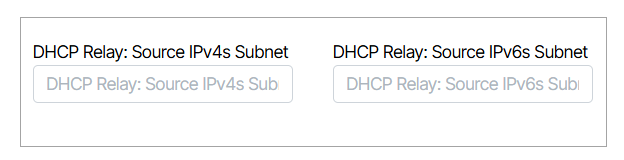

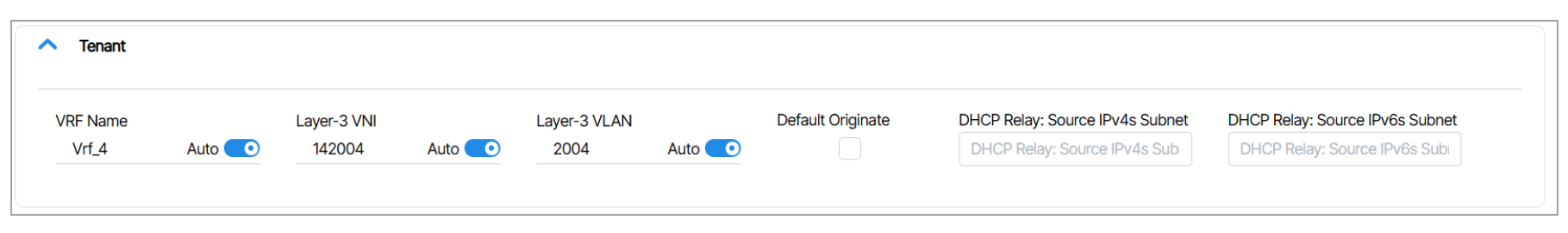

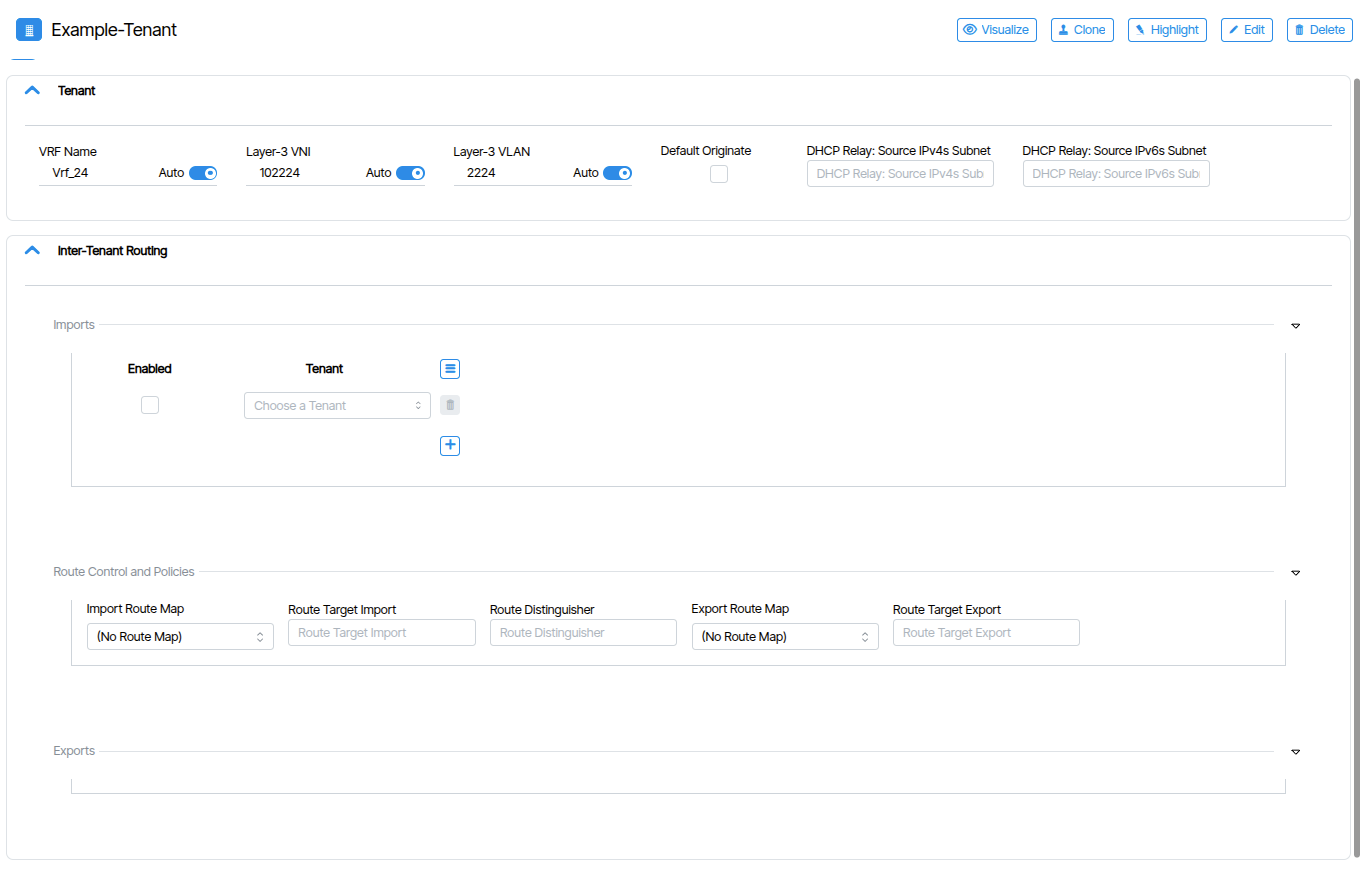

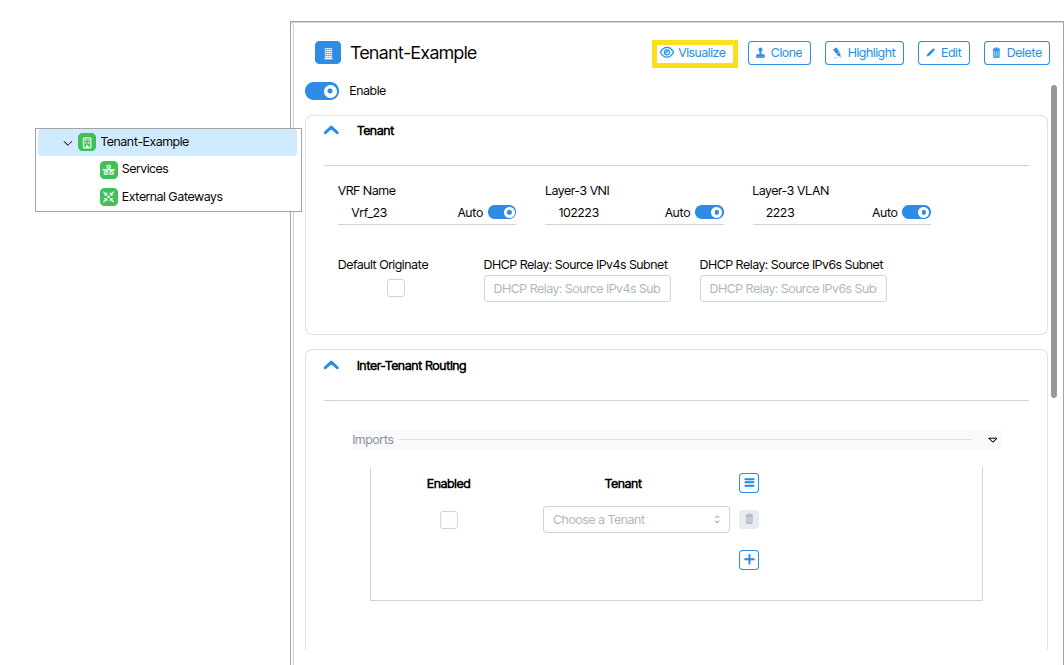

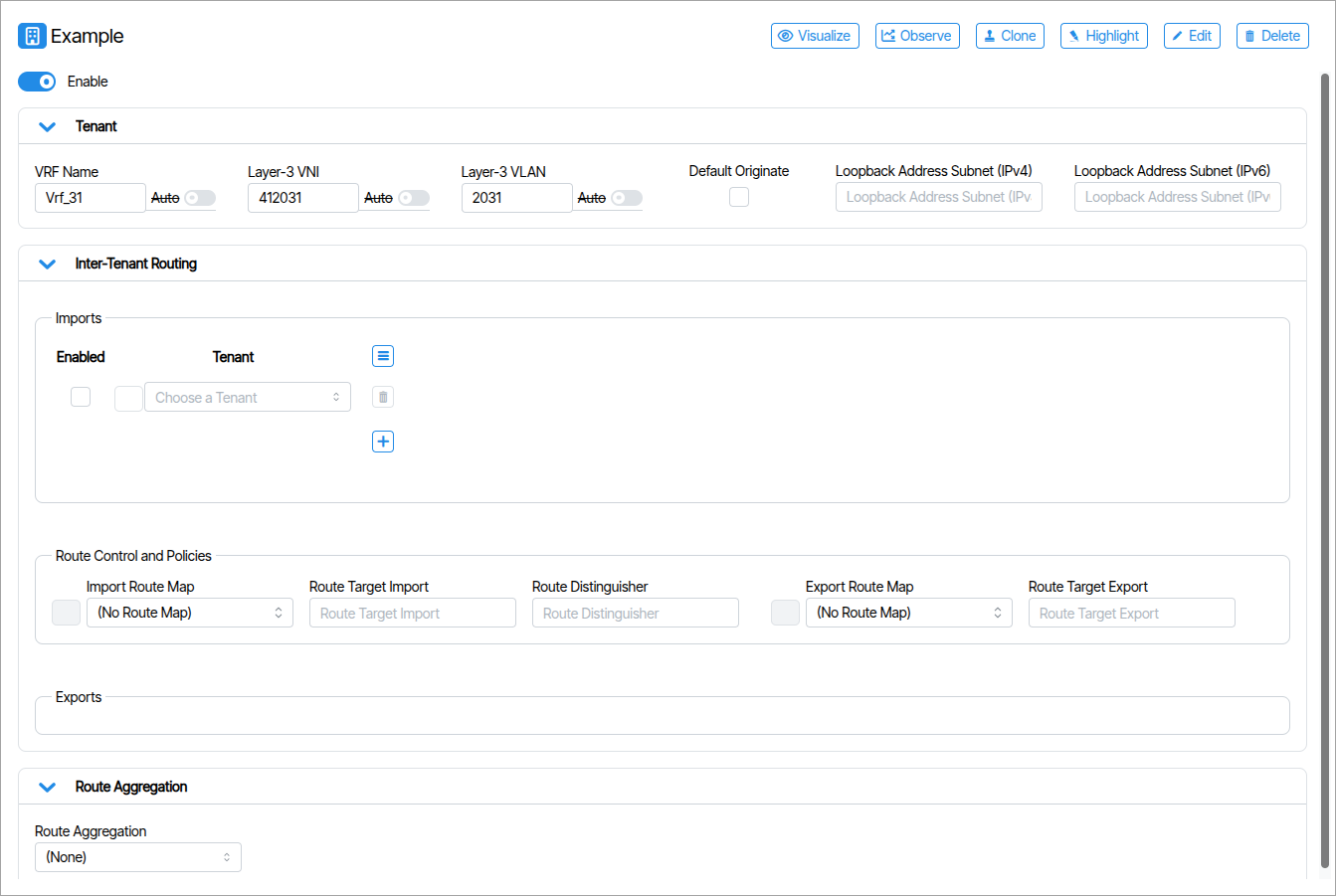

The primary Layer-3 parameters are auto-generated. This includes VRF Name, Layer-3 VNI, Layer-3 VLAN. You must configure the DHCP Relay Source IPs Subnet which is used to allocate addresses to the leaf switches that have these services egressing.

Tenant Slice🔗

The Tenant Slice window offers a visual interface to assign services and Tenant BGP Gateways to Leaf ports. However, when assigning a Service to a Leaf port, the Service is not directly assigned to the port itself. Instead, the Service is assigned to an Eth Port Profile that is automatically generated and assigned to the Leaf port. Eth Port Profiles are collections of one or more Services that you assign to Leaf ports or external LAGs.

To summarize, Services are assigned to Eth Port Profiles and Eth Port Profiles are assigned to Leaf Ports/LAGs.

Tenant Slice Operations🔗

Assign Services to the LAG via Tenant Slice🔗

The conventional way to assign Services to a LAG is via the Tenant Slice window.

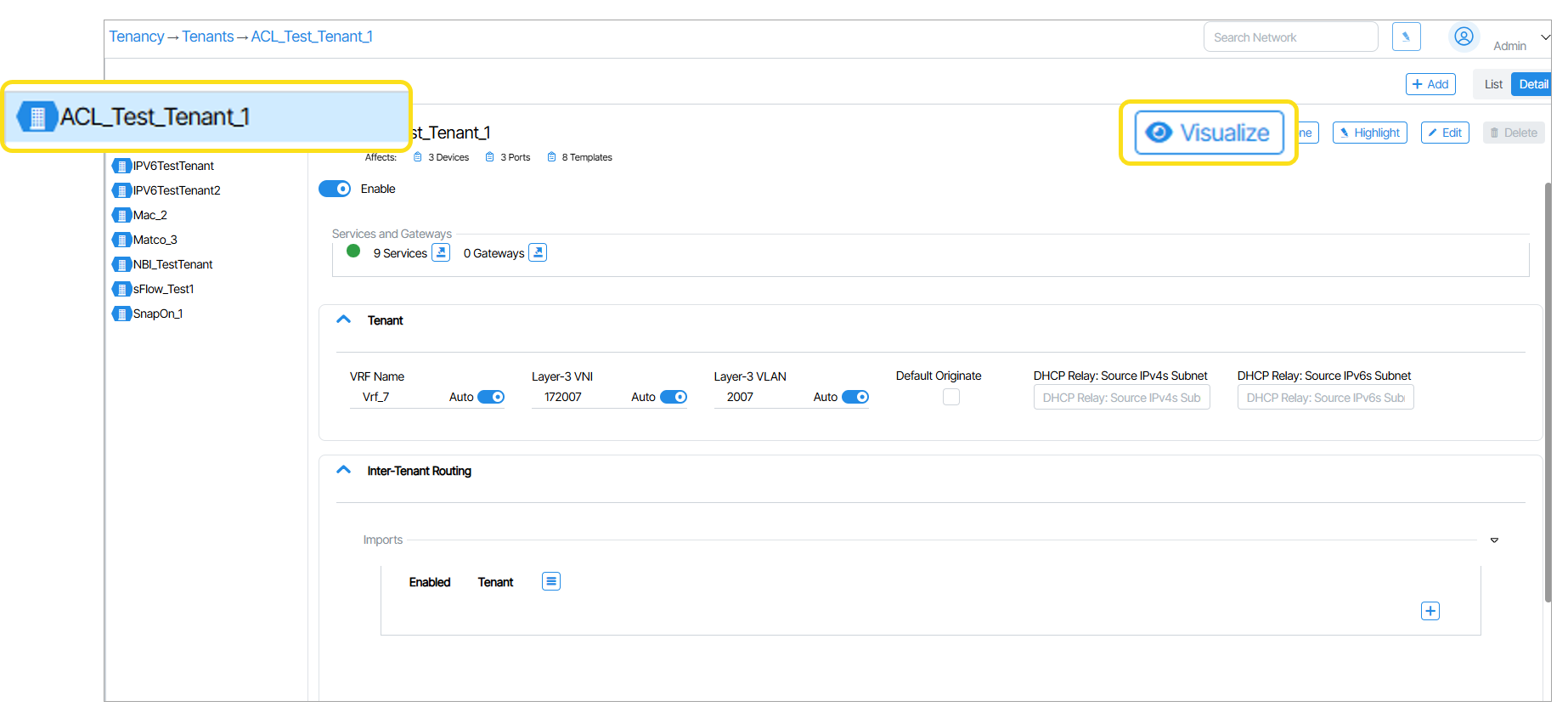

  1. Select a Tenant. In this example the Tenant chosen is named Corporate Network.

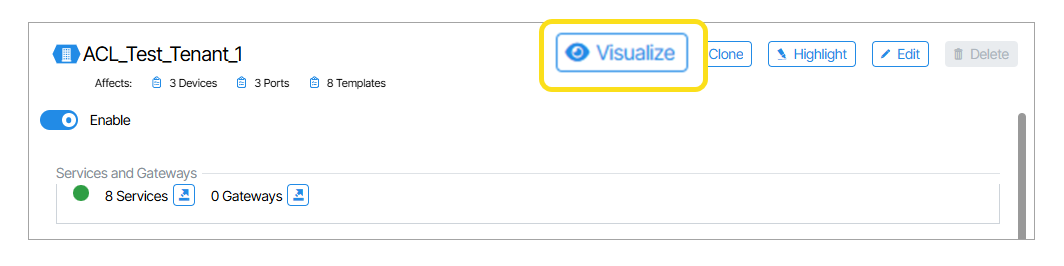

  2. Click the Tenant Slice window.

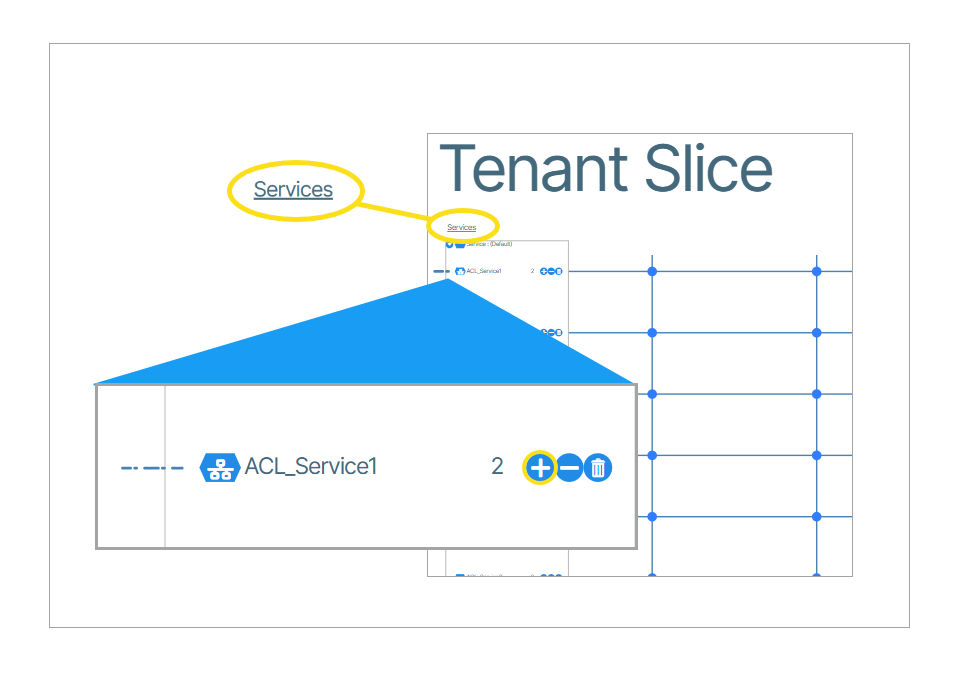

  3. Zoom in and select the Service you want to assign and click the Add Service () button.

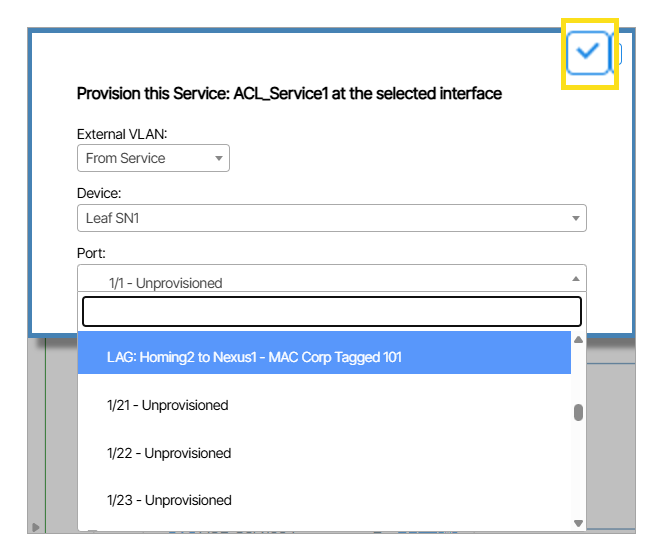

  4. In the drop-down menus, find your LAG (DEMO-LAG in this example) and select it.
  5. Click the checkbox button to create the assignment.

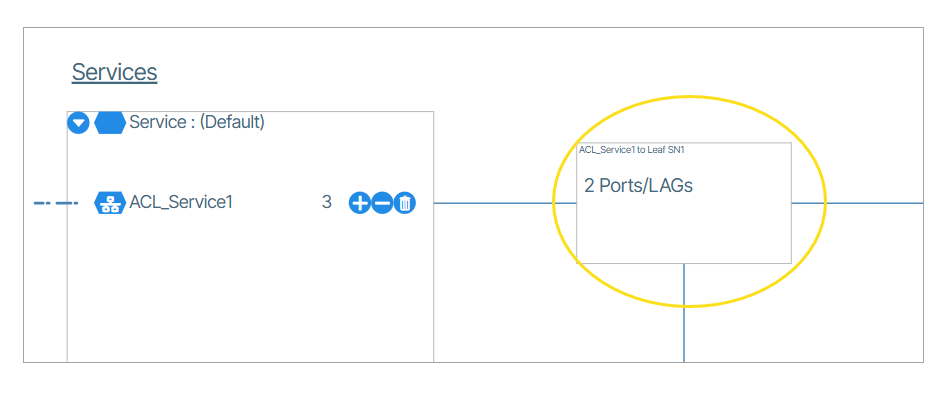

  6. When complete, a visual representation expressing the assignment appears.

Assign a Service to a Leaf Port🔗

The following is an example of assigning a Service to a Leaf port.

  1. Click the Add Service button ().

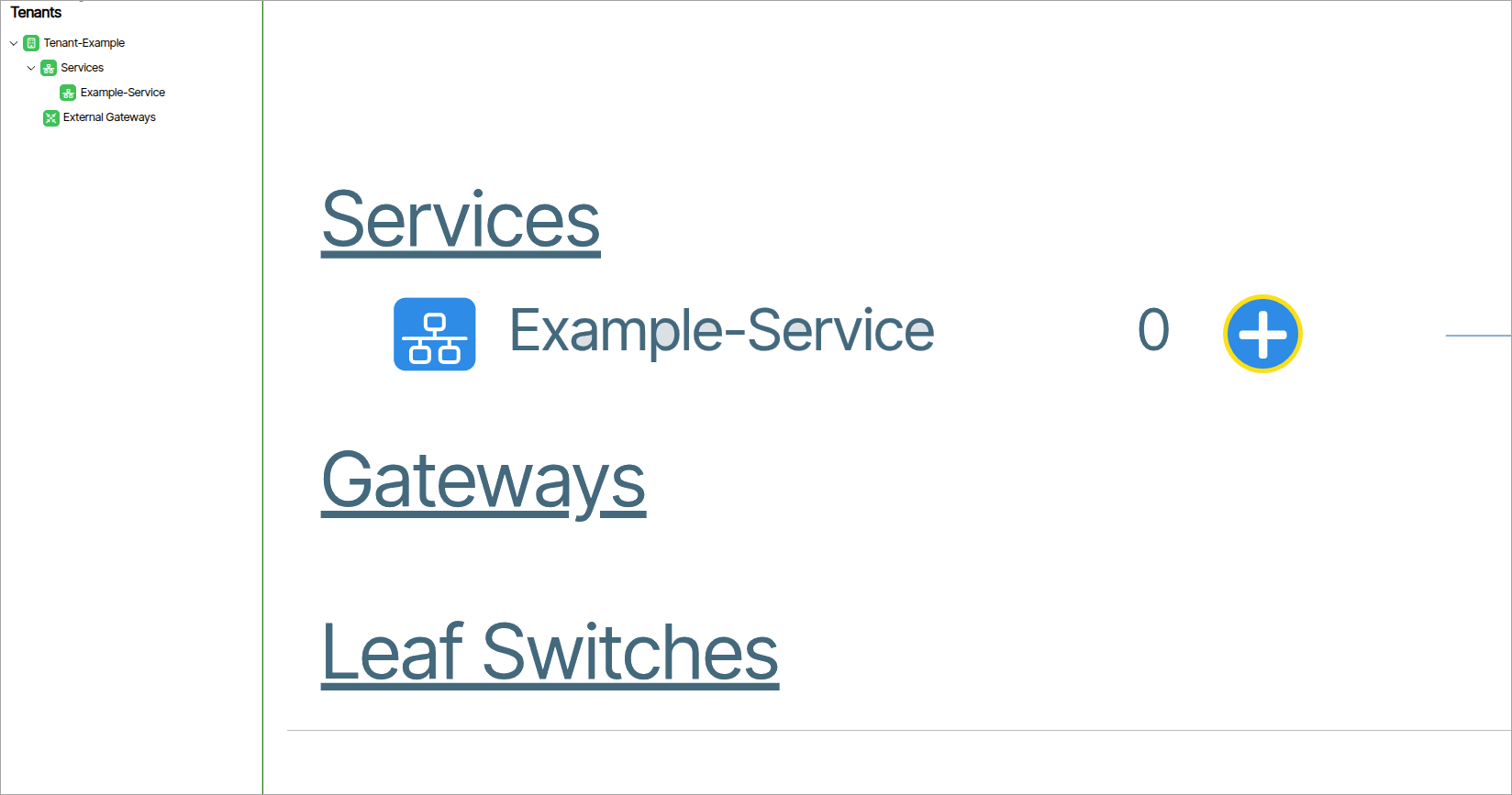

  2. While in Tenant Slice, select the Service you want to use and click its plus button.

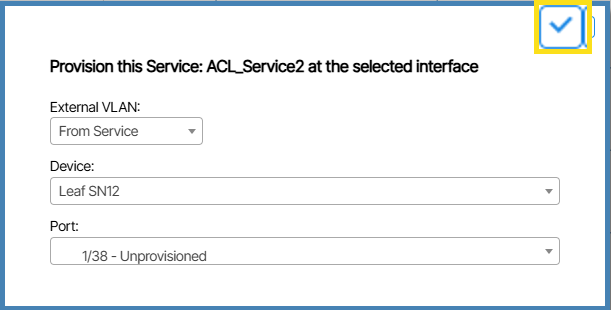

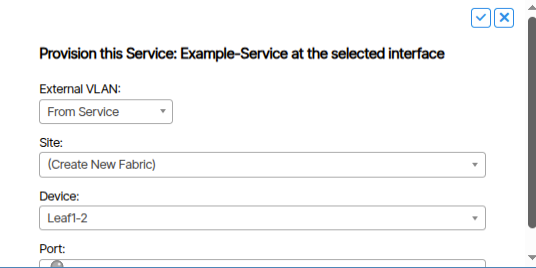

  3. In the window that appears, use the drop-down menus to select the (switch and) port to assign the Service to.

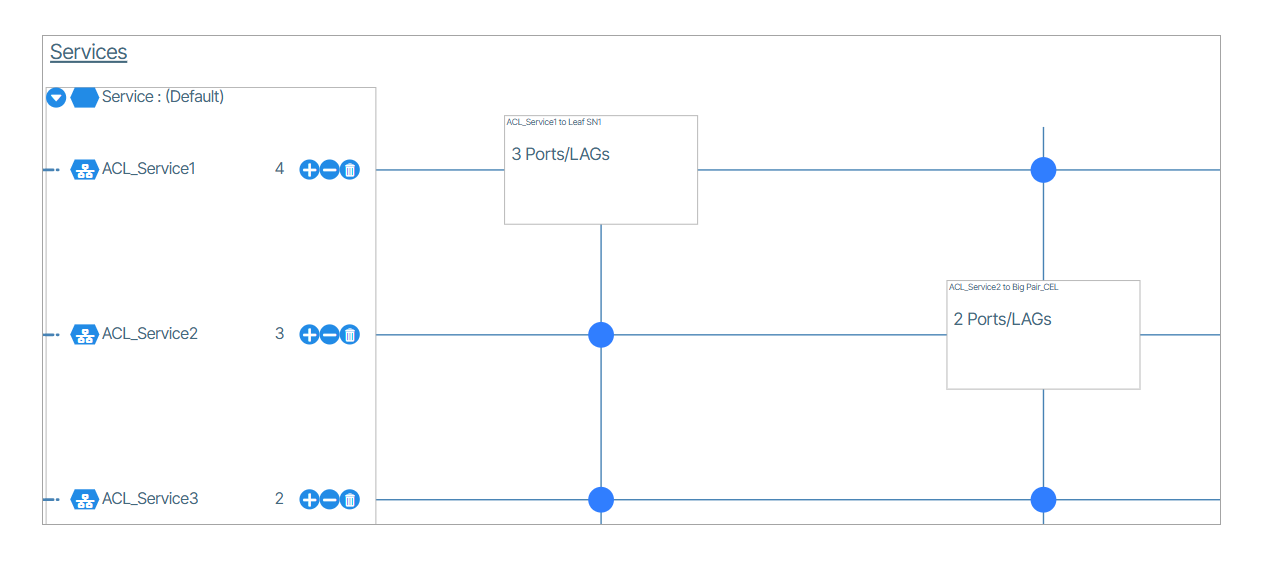

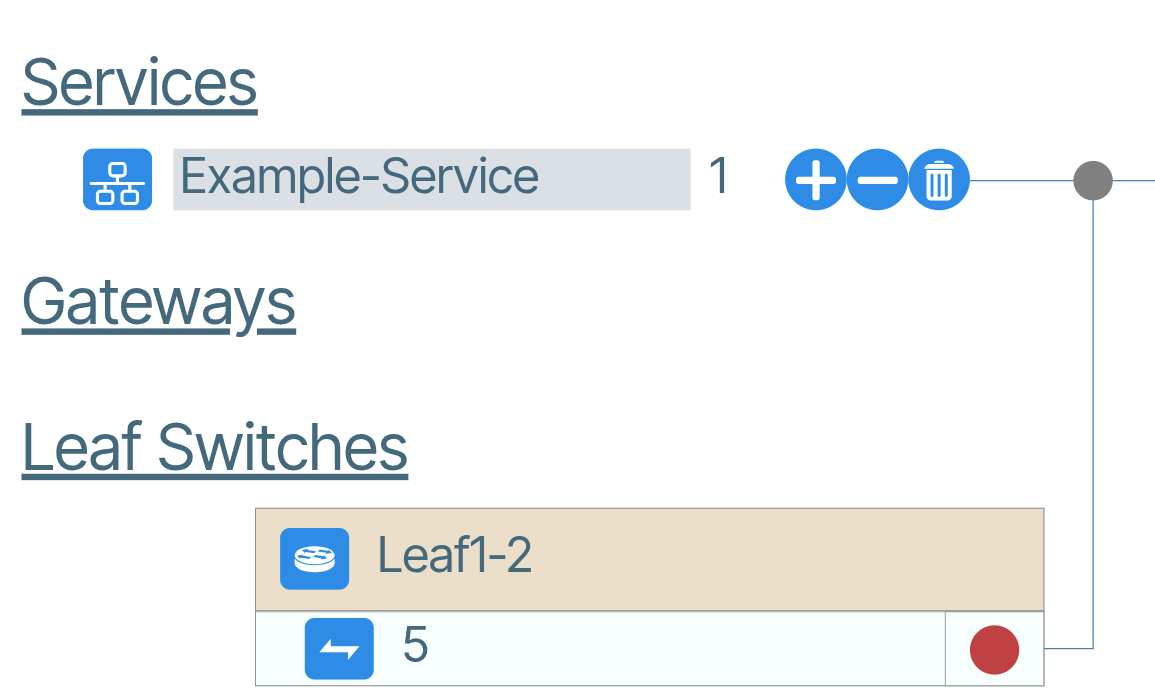

  4. When the assignment is complete, the Tenant Slice window updates to reflect the new state.

Removing an Assignment🔗

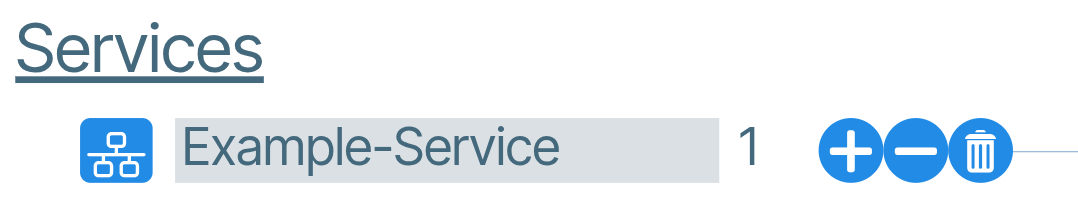

Remove an assignment by clicking either the Remove Service () icon or the node connection () icon of the assignment you want to delete.

Assigning BGP Gateways🔗

The mechanics of creating and managing BGP Gateway assignments in Tenant Slice are the same as the previously discussed Service creation and navigation. When creating a new BGP Gateway assignment, the user is prompted to provide an IP address and a subnet mask in the format of this example: 192.168.1.0/24

Scalable Tenant Slice🔗

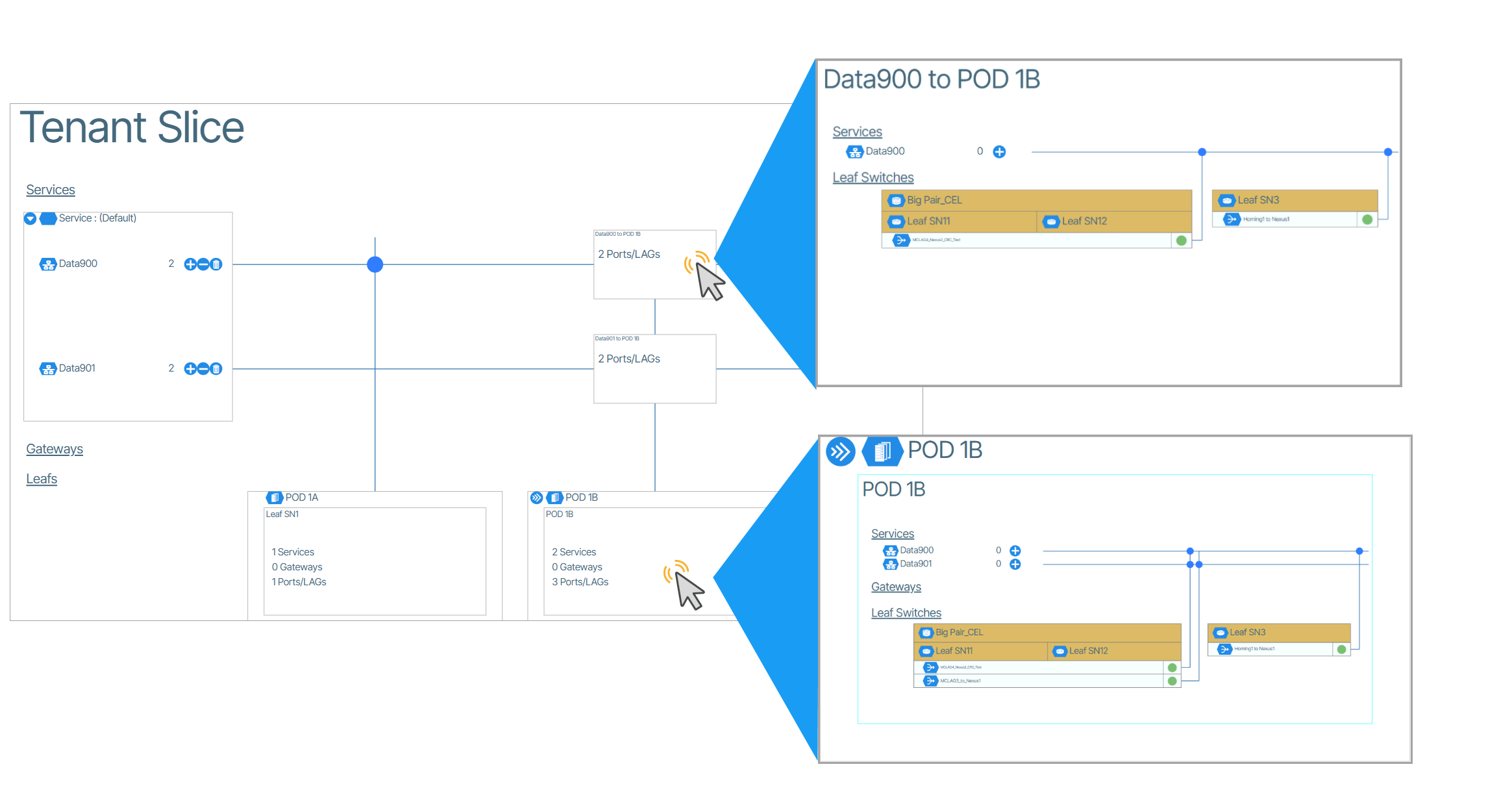

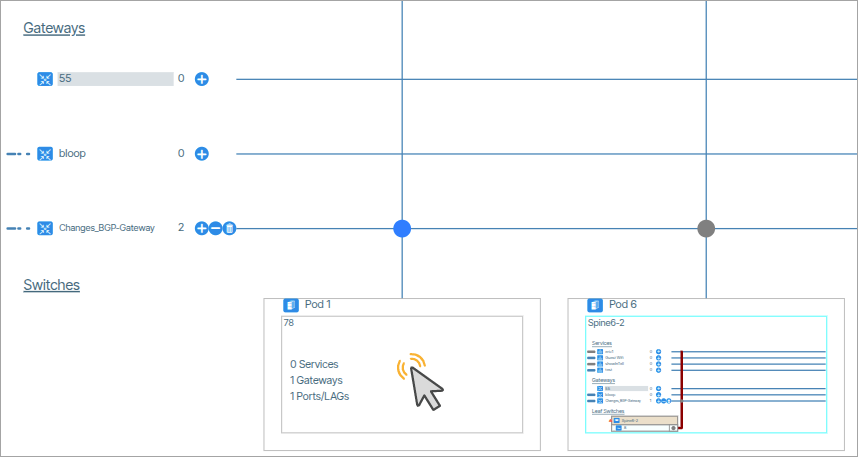

When a Tenant has multiple Service Groups and/or has Services/BGP Gateways provisioned across switches from more than one POD, the data is condensed into visual boxes that encapsulate connections.

To view encapsulated connections, double-click the boxes.

Ports🔗

The number of Leaf ports used by a collection of Tenant Services and Tenant BGP Gateways.

To manipulate port assignments, you use the add and remove buttons:

To assign port configurations to the Tenant Slice, the initial step involves identifying the Service or BGP Gateway to be routed. Then, proceed to click on the designated add or remove button () and perform the necessary assignment or removal to the switch port displayed in the Tenant Slice window.

Route Maps🔗

Note: To create Route Maps, refer to the table of contents for the main Route-Maps section.

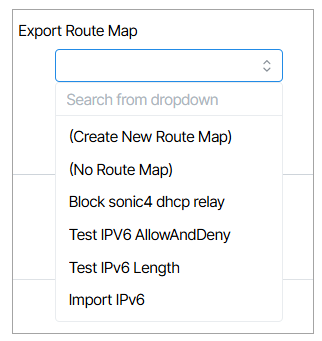

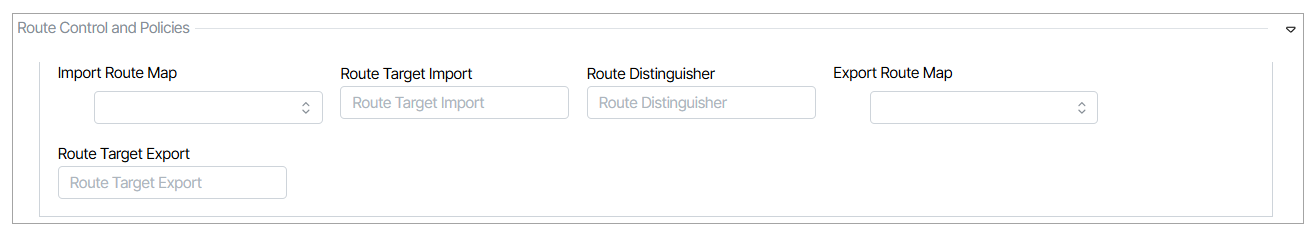

To apply Route-Maps to your Tenant-to-Tenant routing click on the Route Map field and make your selection from the drop down menu.

Route Target, Route Distinguisher🔗

To set Route Target or Route Distinguisher values, select the respective field and type in the value.
