Satori

Satori is a collection of networking monitoring tools used to track system-wide information, such as service port activity, virtual machine performance statistics, provisioning information, and more.

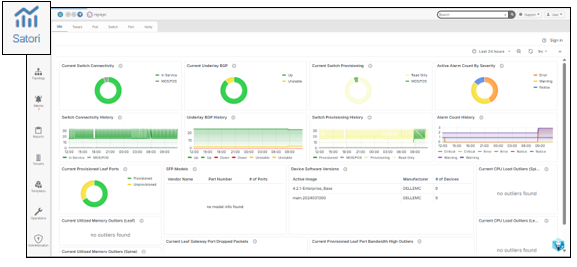

To access Satori, click the Satori icon on the Main Navigation Bar.

Dashboards are grouped by tab name and these are Site, Tenant, Pod , Switch, Port and Verity.

Site

The Site dashboard presents high-level statistical information for all devices in the network, such as the percentage of in-service devices and general connectivity data.

Tenant

The Tenant dashboard presents data specific to each tenant. You can select the desired tenant by using the Tenant drop down menu.

Pod

The Pod dashboard presents data specific to each pod. You can select the desired pod using the Pod dropdown menu.

Switch

The Switch dashboard presents data specific to each individual switch. You can select the desired switch by using the Switch and Port Type dropdown menus.

Port

The Port dashboard presents data specific to each individual port. You can select the desired port by using the Port drop down menu.

Verity

The Verity dashboard presents statistical and graphical data for the high-level system components that make up the system. These components include the VnetC, SDLC, and Monitoring virtual machines, as well as the ACS and GuiA, which are containers within the SDLC.

To view component specific data select it from its drop-down menu.
