Reports🔗
Reports are tabular views of provisioned objects and detected elements within the network. Reports can be easily filtered and customized to create individual operator-specific reporting on any element in Verity. Reports also support bulk actions applied to multiple selected objects.

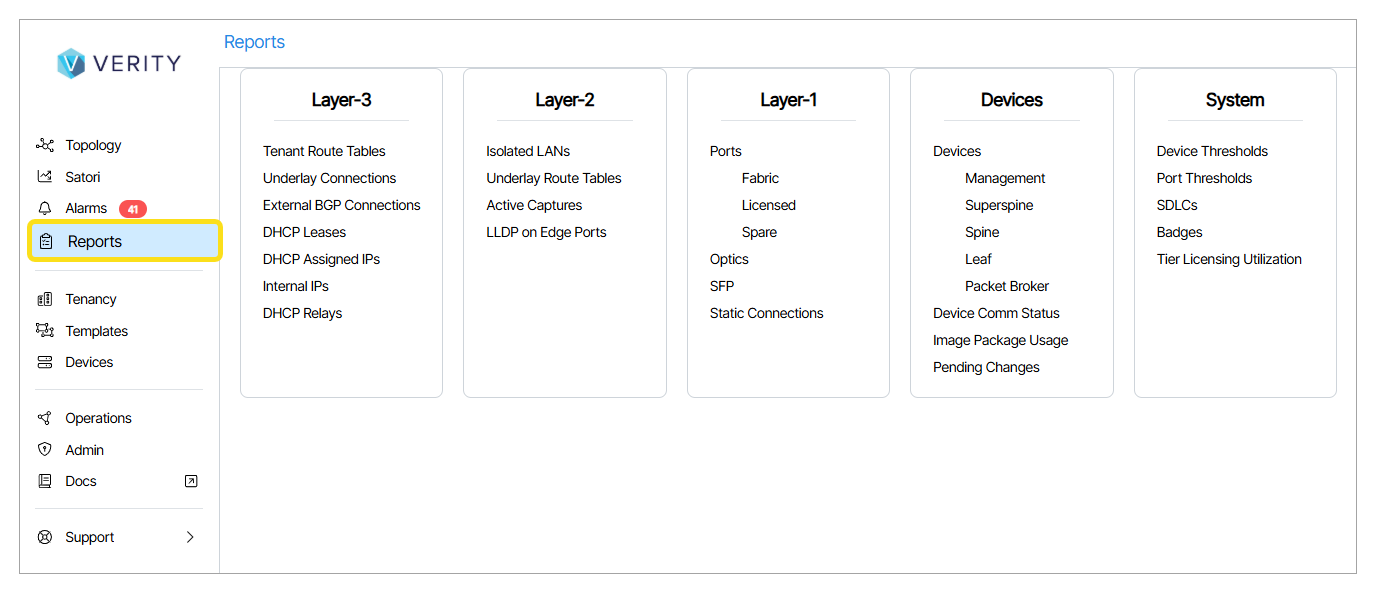

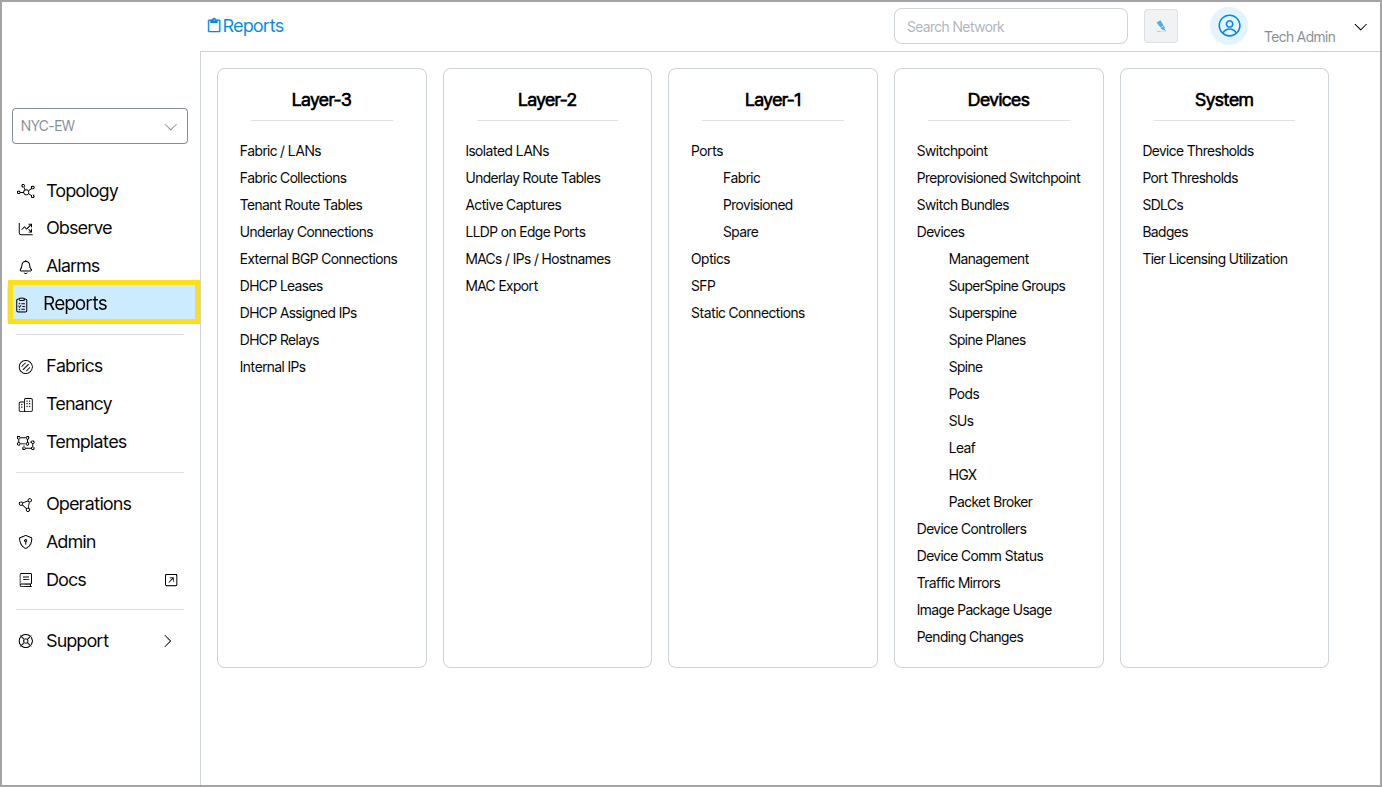

Reports are accessed from the Main Menu Reports icon (
).
In addition, throughout all the navigation panes, usually on the top right of each sub panel, the UI displays a report icon (
) .
Clicking on the report icon takes you to a text-based list that can be sorted, highlighted, exported to CSV, and navigated from. Also, certain bulk commands are supported from the reports. Those functions are launched by selecting rows in the report and clicking the icons at the top.
Applying Actions to Report Items🔗

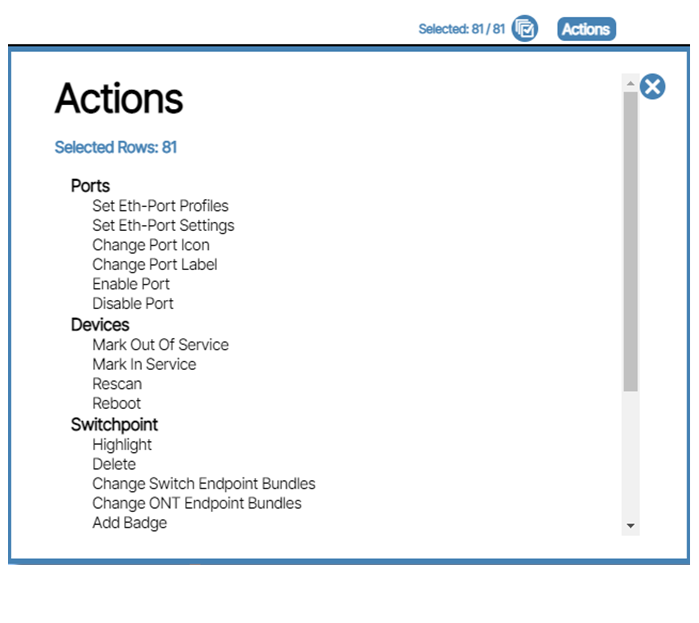

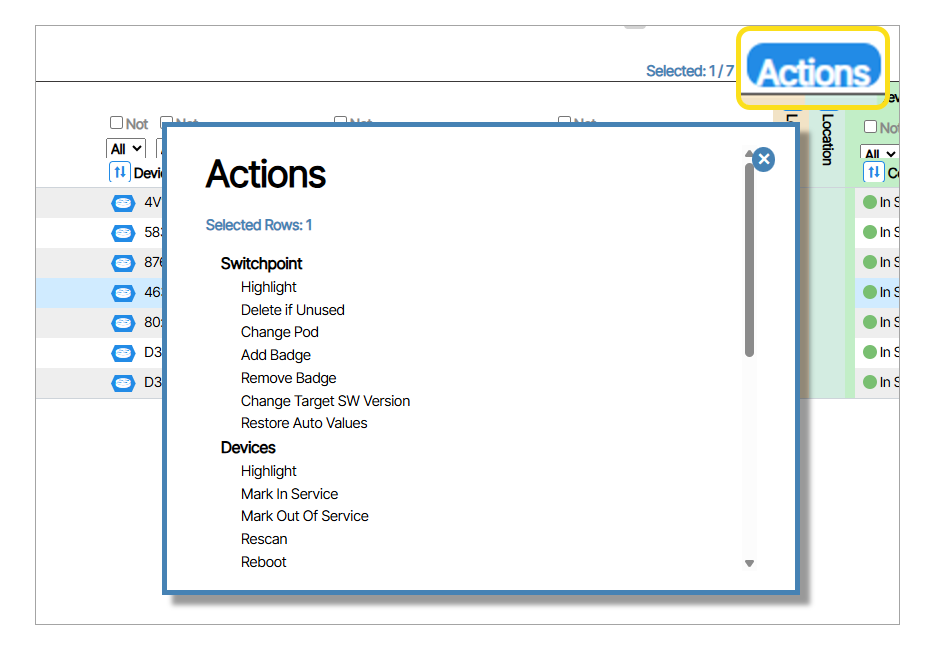

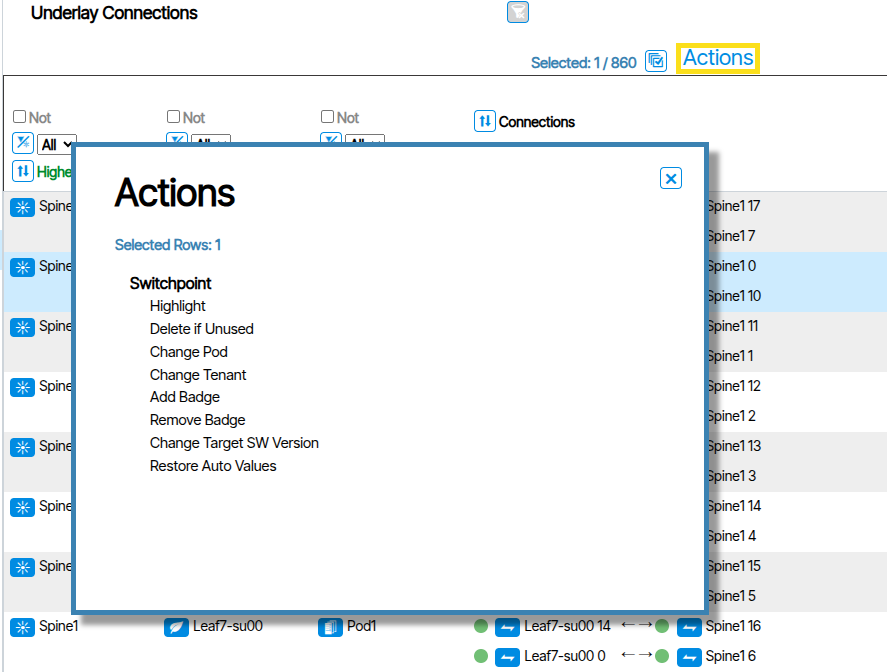

To apply actions to Report items, you select the item(s) you want to affect, click the Actions button, and choose the desired action. All selected Report items are affected by the change.
Report Filtering using Regex🔗
To apply actions to specific entries within Report, you select the item(s) you want to using simple drop down selections or regular expressions (regex).
Regular expressions can be selected by clicking on the filter type selection if shown at the top of the column.
Regex format is aligned with Javascript standards and more information can be found here:
Overridden Provisioning🔗
This Report allows you to see all the provisioning changes you have made and confirm or revert them without being on a specific object.
Report Slice Views🔗

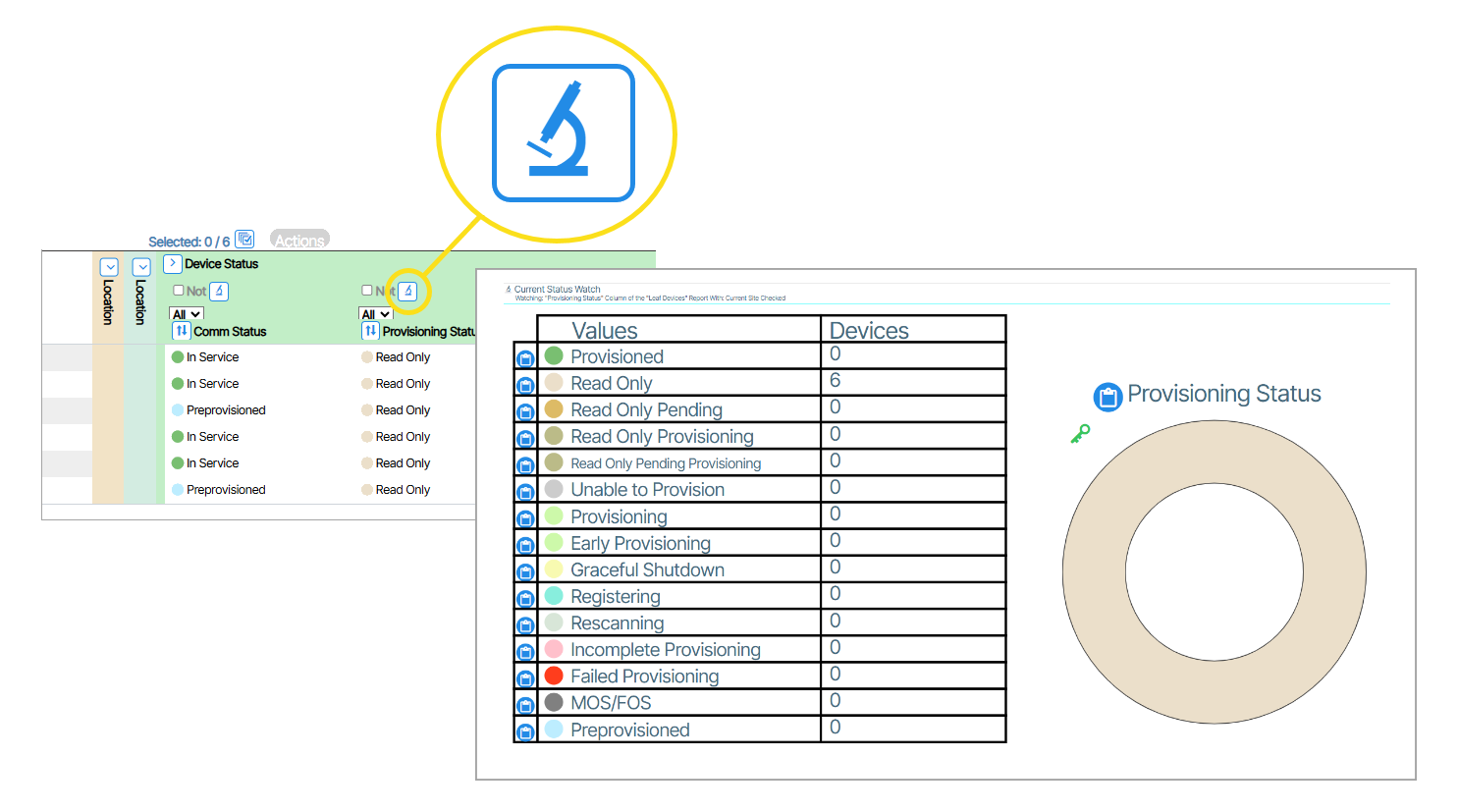

Report Slice View creates a pie graph view of the column in the report. To view the graph click the slice button
Reports Summary List🔗

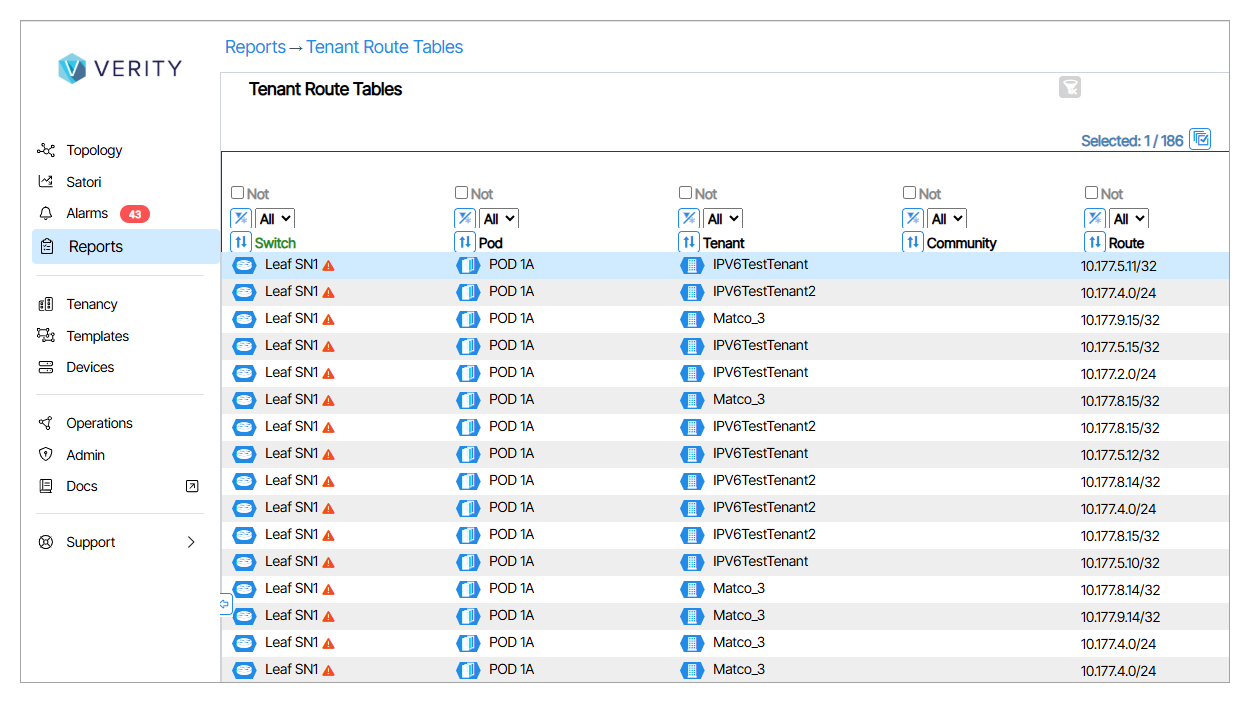

Tenant Route Tables
Tenant Route Table displays the virtualized routing table (VRF) that's specific to a single tenant in a shared infrastructure.
Tenant
A Tenant is the fundamental building block of the data center overlay network. A tenant creates an isolated Layer-3 network to support discrete user groups, organizations, clients, or applications.
Services
A Service is a Layer-2 isolated network VLAN/VXLAN and associated settings.
Gateways
A Gateway is a Layer-3 routing entity that provides entry and exit point between two different networks.
Gateway Profiles
A Gateway Profile is a package of one or more BGP Tenant Gateways that are served by a port, or a collection of settings and configurations that define how a gateway operates, including the IP address assigned to the interface that terminates the BGP session on the switch.
Underlay Connections
An Underlay Connection is the physical network infrastructure that provides the foundation for packet transport between devices. The Underlay Connection Report provides a list of physical connections used for inter-switch Layer-2 & Layer-3 connections.
External BGP Connection
An external BGP (eBGP) connection is a Border Gateway Protocol link established between network routers. It allows separate organizations or network domains to exchange routing information and connect to each other while maintaining their independent routing policies and configurations. The External BGP Connection Report provides a list of the configured BGP neighbors as well as their current state.
DHCP Lease
A DHCP Lease is a temporary assignment of an IP address and related network configuration parameters to a device by a DHCP server. The DHCP Report is a tabular list of all DHCP leases provided by Verity on the management network.
DHCP Assigned IPs
DHCP Assigned IPs are IP addresses that have been dynamically allocated to devices on a network by the DHCP server. The DHCP Assigned IPs Report lists all of the IP addresses assigned by the Verity server.
Internal IPs
Internal IPs are private IP addresses assigned to devices within a local network that are not directly accessible from the public internet.
DHCP Relays
A DHCP Relay is a service running on a network device (typically a router) that forwards DHCP requests from clients to a DHCP server located in a different network segment or subnet. The DHCP Relay Report lists all of the configured DHCP relays in the managed network.
AS-Path Access Lists
In networking, an AS-Path Access List is a tool used in Border Gateway Protocol (BGP) to filter routing information based on the Autonomous System (AS) path. The AS Path Access Lists Report lists the configured AS-Path Access Lists.
Community Lists
Community Lists are filters used in BGP to control routes from a configured set of communities. The Community Lists Report shows all of the configured Community lists.
Extended Community Lists
Extended Community Lists are a mechanism to group and filter routes based on their Extended Community attributes.
IPV4 Prefix Lists
An IPv4 Prefix List is a structured list of IPv4 network prefixes that is used to filter or match IPv4 addresses. The IPv4 Prefix Lists Report is a tabular list of actions, values, and settings for IPv4 Prefix Lists.
IPV6 Prefix Lists
An IPv6 Prefix List is a structured list of IPv6 network prefixes that is used to filter or match IPv6 addresses.
Route Map Clauses
A Route Map Clause is a component within a route map, used to control routing behavior.
Route Maps
A Route Map is an ordered set of rules for making decisions about network routes or traffic.
IPv4 Filters
IPv4 filters are mechanisms used in networking devices like routers and firewalls to control the flow of IPv4 traffic.
IPv4 List Filters
A mechanism that filters IPv4 traffic by matching packet IP addresses against a list of permitted or denied IP addresses or prefixes. Common implementations include Access Control Lists (ACLs) and prefix lists.
IPv6 Filters
IPv6 filters are mechanisms used in networking devices like routers and firewalls to control the flow of IPv6 traffic.
IPv6 List Filters
IPv6 List Filters are a mechanism that filters IPv6 traffic by matching packet IP addresses against a list of permitted or denied IP addresses or prefixes. Common implementations include Access Control Lists (ACLs) and prefix lists.
PB Egress Profiles
PB Egress Profile: A user-defined configuration that specifies how traffic should be forwarded by the Packet Broker. These profiles contain rules, including filters. The PB Egress Profiles Report is a tabular list of actions, values, and settings for PB Egress Profiles.
Isolated LANs
An isolated LAN is a local area network that is intentionally disconnected from any other network, including the internet and any other internal networks. This means that devices on the isolated LAN can only communicate with each other, and cannot communicate with devices outside of that LAN.
Underlay Route Tables
An underlay route table is used by physical network devices to determine the best path for forwarding traffic within the underlying physical network infrastructure. Routing protocols like OSPF, IS-IS, and BGP populate these tables to ensure all devices in the underlay can reach each other, providing essential connectivity for overlay networks.
Active Captures
Refers to the process of intercepting and recording network traffic as it occurs. The Active Captures Report is a tabular list of actions, values, and settings for Capture processes that are still ongoing.
LLDP on Edge Ports
LLDP is a protocol that allows network devices to advertise information like their identity and capabilities to neighboring devices on a local network. On edge ports, LLDP can be used to auto-configure VoIP phones, inventory devices, and troubleshoot connectivity, but it may be disabled for security reasons to prevent unauthorized disclosure of network topology.
Eth-Port Profiles
An eth-port profile is a reusable template containing a set of pre-defined Ethernet port configurations, which includes a list of services used by that port, that can be applied consistently to multiple network interfaces.
Eth-Port Settings
The configurable parameters associated with a physical or logical Ethernet port on a network device like a switch, router, or server. These settings determine how the port operates in the network.
Eth Device Settings
An Eth Device Setting is a provisioning object that allows multiple Switches/ONTs in the system to share some common configurations.
LAGs
A LAG (Link Aggregation Group) is the logical interface created by combining multiple physical Ethernet links in parallel to increase bandwidth and provide redundancy between two network devices, such as switches or a switch and a server.
Traffic Mirrors
A Traffic Mirror (also known as port mirroring or SPAN - Switched Port Analyzer, particularly in Cisco terminology) is a networking feature that allows you to create a copy of network traffic passing through one or more ports on a network device (like a switch or router) and send that copied traffic to a designated monitoring port. This enables network administrators and security tools to analyze network traffic without directly impacting the live data flow. The Traffic Mirrors report lists active mirror sessions (SPANs).
Ports
The Ports Report is a tabular list of actions, values, devices and settings for all Ports.
Fabric
The Fabric Report is a tabular list of actions, values, devices and settings for all Fabric Ports.
Provisioned
The Provisioned Report is a tabular list of actions, values, devices and settings for Provisioned Ports.
Spare
The Spare Report is a tabular list of actions, values, devices and settings for Spare Ports.
Optics
In networking, optics generally refers to the components and technologies that utilize light to transmit data over fiber optic cables. Instead of electrical signals used in traditional copper-based networking, optics leverages light pulses to carry information, enabling significantly higher bandwidth and longer transmission distances with less signal degradation.
SFP
SFP stands for Small Form-factor Pluggable, which is a type of transceiver used in networking equipment. It is a hot-swappable component that can be inserted into a switch to provide connectivity.
Static Connections
A Static Connection is a connection that is not dynamic. The Static Connections Report is a tabular list of actions, values, and settings for Static Connections.
Devices

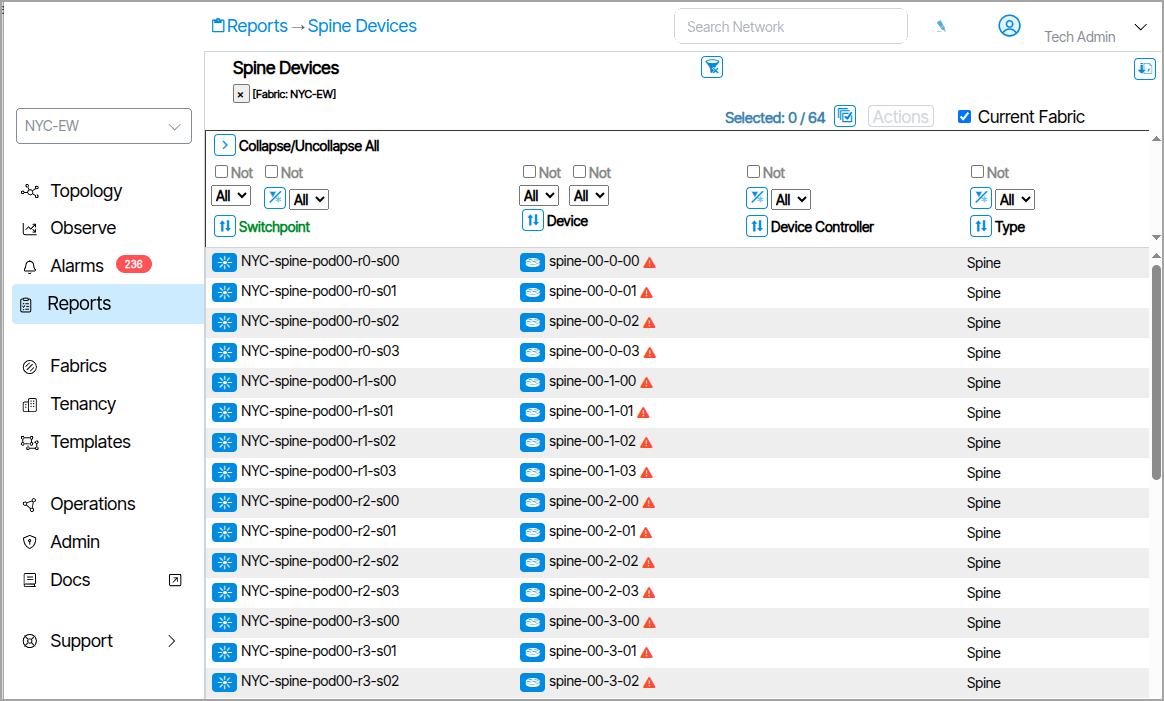

The Devices Report is a tabular view of values, settings and information for the following devices:
- Management Devices
- Superspine Devices
- Spine Devices
- Leaf Devices
- Packet Broker Devices
Device Comm Status
Device Comm Status is the state a device is in and is expressed by different colors that represent different states. The Device Comm Status Report is a tabular view of each device and their current state.
Image Package Usage
Image Package Usage Report lists the currently used SDLC image by name and version number.
Pending Changes
Pending Changes includes all switches that have .system.configuration.target-pending set to true (and are not read-only).
Device Controllers
The Device Controllers is a tabular list of actions, values, and settings for all Device Controllers
Preprovisioned Switchpoint
The Preprovisioned Switchpoint Report is a tabular list of actions, values, and settings for all Preprovisioned Switchpoints.
Switch Bundles
The Switch Bundles Report is a tabular list of actions, values, and settings for all Switch Bundles.
Unsupported Features
The Unsupported Features Report lists all devices that are configured to use unsupported features.
Tier Licensing Utilization
The Tier Licensing Utilization Report is a tabular list of each device's licensing status.
SDLCs
The SDLCs Report is a tabular view of each SDLC and their current state.
All Provisioning
This report provides a comprehensive overview of all provisioning objects within the system, including switches, ONTs, Ethernet port profiles, voice port profiles, and all other related components.
Unused Provisioning
This report provides a comprehensive overview of all unused provisioning objects within the system. These include switches, ONTs, Ethernet port profiles, voice port profiles, and other related components that are not currently in use by any other entities in the system.
Badges
Badges serve as a grouping mechanism for endpoints within the system. They allow you to categorize endpoints based on specific criteria—such as their function, vendor (e.g., Dell), or any other organizational preference. By assigning the same badge color and number to related endpoints, you can easily group and identify them according to these classifications.
Groups
Groups are a grouping mechanism for provisioning templates. The Groups report lists information about Groups.
