Inter-Site Routing

Inter-POD Gateways

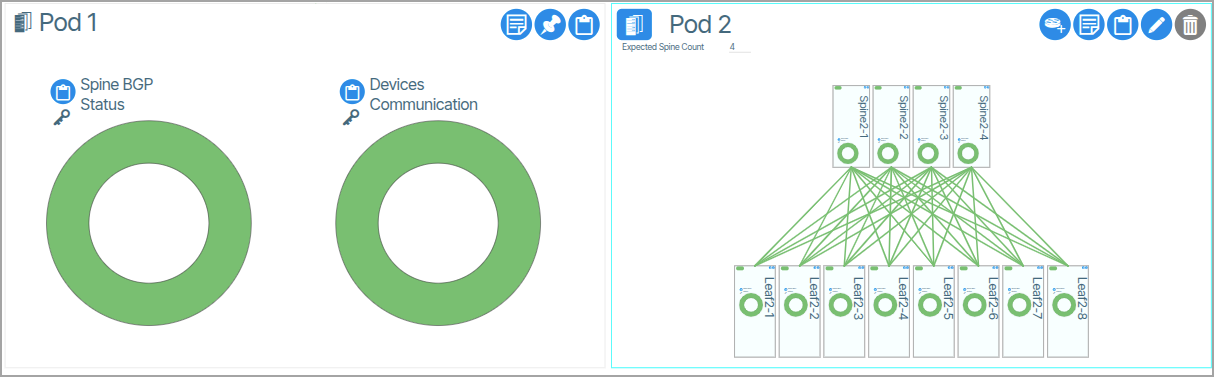

This feature enables underlay BGP connections between PODS in lieu of using the Superspine layer. The typical use case is for multiple PODs managed by a single instance of Verity system that are separate geographical sites. This image () shows a basic system containing two PODS with each containing a Leaf pair and two single Leaf switches. It is recommended that the Leaf switches used for the BGP connections between the PODs are not members of an MCLAG pair.

Create Site Gateways

The BGP connections are created using “Site Gateway” objects found in Topology/Site Gateways.

A “Site Gateway” is required for each end of the BGP sessions planned between the sites. For high availability this requires four site gateways to be created. Each Gateway object requires the Neighbor AS number of the Leaf on the other side of the planned connection, and the IP address that is used on the Gateway Port Profile on the neighbor’s switch. Additionally, the option called “Fabric Interconnect” should be set. ()

Create Gateway Profiles

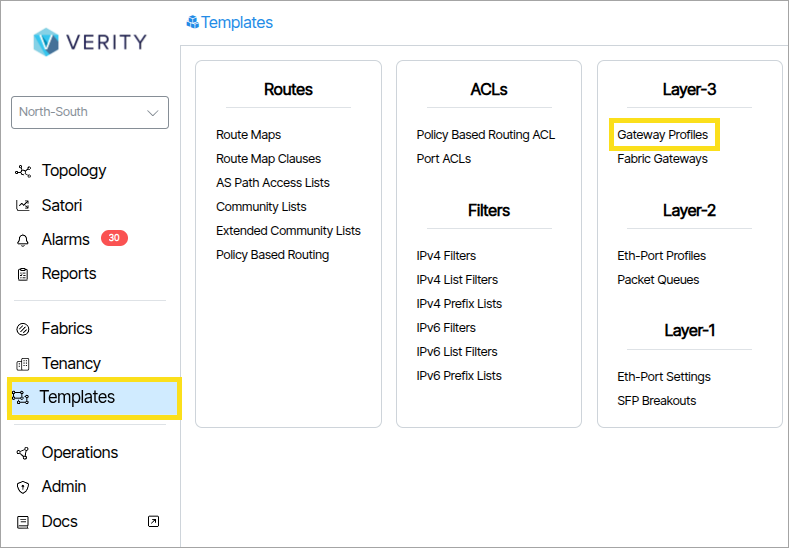

Go to Templates/Templates/Gateway Profiles to create the needed Gateway Profiles that are used to apply to either ports directly, or indirectly through LAG objects.()

Four profiles are required. Each profile references one of the Gateway objects and contains the IP address assigned to the interface that terminates the BGP session on the switch where it will be applied. This IP address communicates with the neighbor IP address specified in the Gateway object.

Adding a Gateway Profile to a LAG

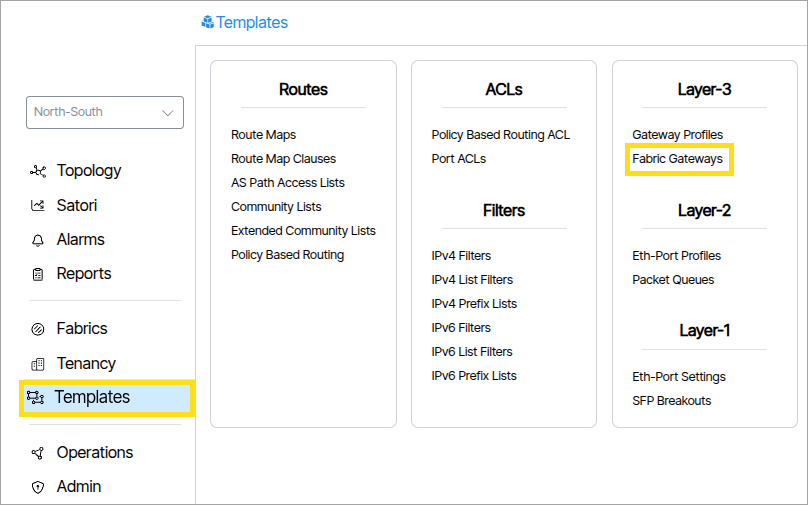

The Gateway profile can be assigned to a single port or to a LAG. In this example, LAGs are used. Create an external LAG, set the BGP LAP option, select the Gateway profile () and assign it to the switch port. You set the connection in the port editing window under the center form field. ()
