vNetC and SDLC Configuration for High Availability Deployments🔗

Verity supports an automatic failover solution which provides support for high availability (HA) in the orchestration platform.

The solution requires two host systems. As these are operated in active/standby mode, each system must be sized to handle the full system load according to the resource calculator referenced in the installation instructions.

Initially, support is provided for the KVM hypervisor running on Ubuntu 24.04 LTS, but the system has limited host system dependencies and can be configured using different hypervisors and host operating systems. The instructions that follow are assuming Ubuntu KVM but the user can adapt to their brand of hypervisor as required.

This section includes installation information as well as considerations for Verity upgrades while systems are in HA mode.

Installation Overview🔗

Each system is installed per the standard instructions in the Quickstart section of this documentation. This section contains a configuration worksheet that should be filled out ahead of time with the overall network plan and address assignments in the environment containing the two host machines.

The process contains the following steps:

  1. Review the contents of this complete section
  2. Complete the Configuration Worksheet
  3. Install each system per standard instructions. It is important that the steps of upgrading vNETC and SDLC to the latest release are done per instructions before proceeding the next step.

Important

The sections below titled "Creating the vNETCs" and "Creating the SDLCs" have specific information to guide the standard installation process.

Important

Since both SDLCs are configured with the same addresses they should not be allowed to connect to the same network until the HA process is completed on both systems. You can achieve this by always making sure one SDLC is shutdown or by having the second server completely isolated until HA configuration is completed.

  1. Configure vNetC HA mode

System Block Diagrams🔗

Verity supports both single external (server) NIC and two external NIC configurations for installation. Please refer to those diagrams for the KVM installation within the Quikstart section as your base starting point for HA.

When using HA, the two installation options become either a two external NIC or three external NIC installations, respectively. The additional external NIC is used for the cross-connect communications between the two servers. The user may chose to use bond groups which increases the number of external NICs in their servers for any interfaces, but this is transparent to the Verity vNETC.

In normal operating mode, the active vNETC periodically transfers important state to the inactive vNETC in addition to continuously replicating POSTGRES database updates.

The additional state includes:

  1. System configuration
  2. Master key vault
  3. Statistics data

The management switch architecture is up to the user (e.g. single switch, MCLAG etc.) and is also transparent to the vNETCs.

The HA system level diagrams for both installation options is shown below:

Two External NIC Block Diagram🔗

Three External NIC Block Diagram🔗

Configuration Worksheet🔗

Token Description Example Your Value
MGMT_NET The management network address 10.0.0.0
WAN_NET The WAN network address (can be the same as MGMT_NET ) 10.0.0.0
WAN_GW The gateway address for the WAN network 10.0.0.1/24
FLOATING_IP The IP address that will access the Web GUI and float between redundant nodes 10.0.0.10
FQDN The FQDN for the floating IP (Needed if GUI will be accessed using a domain name) vnetc.domain.com
BACK_NET The backdoor network used to manage the SDLC 10.12.99.0
XCONN_NET The cross-connect network address 169.254.0.0
VERIFICATION_IP The IP address of a switch management port that responds to ICMP echo-request 10.0.0.99/24
DNS 1 The IP address of the primary DNS server 8.8.8.8
DNS 2 The IP address of the secondary DNS server

Common SDLC elements🔗

Token Description Example Your Value
SDLC_IP SDLC IP address on management network (same for both SDLCs) 10.0.0.9
SDLC_SN SDLC serial number (same for both SDLCs) SDLC-A
SDLC_HOSTNAME SDLC hostname (same for both SDLCs, can be the same as SDLC_SN ) SDLC-A
ACS_IP ACS IP address on management network (same for both SDLCs) 10.0.0.3

KVM host elements🔗

Token Description Example Your Value
HOST1_IP The IP address for accessing the first KVM server host on the management or WAN network 10.0.0.11/24
HOST2_IP The IP address for accessing the second KVM server host on the management or WAN network 10.0.0.12/24

Node 1 specific elements🔗

Token Description Example Your Value
NAME1 The hostname for first vNetC vnetc1.domain.com
VNETC1_IP The IP address of the first vNetC in the WAN_NET or MGMT_NET network 10.0.0.21/24
VNETC1_BACK_IP The IP address of the first vNetC in BACK_NET 10.12.99.1/30
SDLC1_BACK_IP The IP address of the first SDLC in BACK_NET 10.12.99.2/30
VNETC1_XCONN_IP The IP address of the first vNetC in XCONN_NET 169.254.0.1/30

Node 2 specific elements🔗

Token Description Example Your Value
NAME2 The hostname for second vNetC vnetc2.domain.com
VNETC2_IP The IP address of the second vNetC in the WAN_NET or MGMT_NET network 10.0.0.22/24
VNETC2_BACK_IP The IP address of the second vNetC in BACK_NET (can be the same as VNETC1_BACK_IP ) 10.12.99.1/30
SDLC2_BACK_IP The IP address of the second SDLC in BACK_NET (can be the same as SDLC1_BACK_IP ) 10.12.99.2/30
VNETC2_XCONN_IP The IP address of the second vNetC in XCONN_NET 169.254.0.2/30

Host O/S installation🔗

The host should be installed with the Ubuntu-LTS server edition, with sshd enabled.

apt update; apt upgrade -y; apt autoremove -y
apt install -y net-tools iputils-ping rsync curl wget traceroute htop
apt install -y qemu-kvm libvirt-daemon-system libvirt-clients bridge-utils smartmontools

Time synchronization🔗

The High Availability system requires that clocks on the two vNetCs are synchronized. This is set up automatically but will work only if the systems have NTP access to the internet. If not, NTP must be configured on the vNetCs to operate with an accessible NTP server on the local network.

Addressing and bridges🔗

The host should have at least two physical NICs which we'll call "eno1" and "eno2".

"eno1" should be connected to the WAN network, and "eno2" should be connected

to the "eno2" interface on the redundant pair.

If there is a management network separate from the WAN network, then it should be connected to a third physical NIC which we'll call "eno3".

The WAN network should be accessible to administrators who will use the vNetC GUI. This will have:

  • two fixed addresses, one for each vNetC VM
  • one floating address, used to access the active vNetC GUI

The management network should be configured with an IP space large enough for all managed

devices to have an IPv4 address, plus:

  • one fixed address shared by the two SDLC VMs
  • one fixed address shared by the two ACS containers

The "eno2" interface is presented to the vNetC VM via a bridge "xconn". It should

have a /30 interface (or larger). As this is a point-to-point connection, we

typically use a link-local address like "169.254.0.1/30".

Each vNetC needs to be able to manage the SDLC running on the local host. This

is done using a bridge called "back". This should be configured with an IP space

large enough for a vNetC and each SDLC, so a /30 is the minimum size, but it makes

sense to use a larger block to allow for future growth. In these examples we use

"10.12.99.1/24".

In these examples, the netplan format is used, but it is also possible to use KVM

network configurations. The components (vNetCs and SDLCs) are all configured

with static addresses, so there is no need to provide DHCP support on any of the

bridges.

Netplan configuration examples🔗

Netplan example with management network and WAN combined. In this case, the third interface is not connected and not used but is needed to keep a consistent interface order.


network:
  ethernets:
    eno1:
      dhcp4: false
      dhcp6: false
    eno2:
      dhcp4: false
      dhcp6: false
  bridges:
    wan:
      interfaces: [eno1]
      addresses:   [HOST1_IP]
      dhcp4: false
      dhcp6: false
      routes:
      - to: default
        via:   WAN_GW
    xconn:
      interfaces: [eno2]
      dhcp4: false
      dhcp6: false
    mgmt:
      interfaces: []
      dhcp4: false
      dhcp6: false
    back:
      interfaces: []
      dhcp4: false
      dhcp6: false
  version: 2

Netplan example with separate management network and WAN. In this case, the third interface is connected to the management port (eno3). Differences from above are highlighted in green.

network:
  ethernets:
    eno1:
      dhcp4: false
      dhcp6: false
    eno2:
      dhcp4: false
      dhcp6: false
    eno3:
      dhcp4: false
      dhcp6: false
  bridges:
    wan:
      interfaces: [eno1]
      addresses:  [HOST1_IP]
      dhcp4: false
      dhcp6: false
      routes:
      - to: default
        via:  WAN_GW
    xconn:
      interfaces: [eno2]
      dhcp4: false
      dhcp6: false
    mgmt:
      interfaces:[eno3]
      dhcp4: false
      dhcp6: false
    back:
      interfaces: []
      dhcp4: false
      dhcp6: false
  version: 2

Important

The following sections ("Creating the vNETcs" and "Creating the SDLCs") should be used as a reference when running the standard install procedure. It is not intended to change the order of the standard install process, just to provide guidance to information used during installation.

Creating the vNetCs🔗

Follow the verity quickstart instructions to install the vNetC under KVM.

In the vNetC xml:

  • change the name to 'vnetc1' or some appropriate name that indicates this is node 1

  • replace the three <interface> definitions with these definitions (newer xml files may already be in this format):

<interface type='bridge'>
  <source bridge='wan'/>
  <model type='virtio'/>
  <link state='up'/>
</interface>
<interface type='bridge'>
  <source bridge='xconn'/>
  <model type='virtio'/>
  <link state='up'/>
</interface>
<interface type='bridge'>
  <source bridge='mgmt'/>
  <model type='virtio'/>
  <link state='up'/>
</interface>
<interface type='bridge'>
  <source bridge='back'/>
  <model type='virtio'/>
  <link state='up'/>
</interface>

Continue to "virsh define" the vnetc and start the vnetc per the standard instructions.

If the management and WAN networks are combined, make the Management Address field is cleared in the Admin Network Settings tile,

otherwise set:

  • Management Address: MGMT_NET

The same procedure is used to create the second vNetC, with appropriate variable changes (eg VNETC2_IP instead of VNETC1_IP)

Creating the SDLCs🔗

For all configurations:

  • the first interface to type 'bridge', source bridge='back'
  • the second interface bridge to source bridge='mgmt'
  • the third interface is not used and should be removed

Follow the instructions to install the first SDLC for KVM

  • Use admin/wizard to set SDLC_HOSTNAME , SDLC_IP, ACS_IP , NTP address will be VNETC1_IP

  • Use admin/redundancy/serial to set SDLC_SN

The same procedure is used to create the second SDLC, with appropriate variable changes (eg VNETC2_IP instead of VNETC1_IP )

Important

Do not proceed to the next steps until you have both systems installed and running the latest provide core and firmware loads for Verity Release 6.4. Reminder that the SDLCs need to remain isolated from each other.

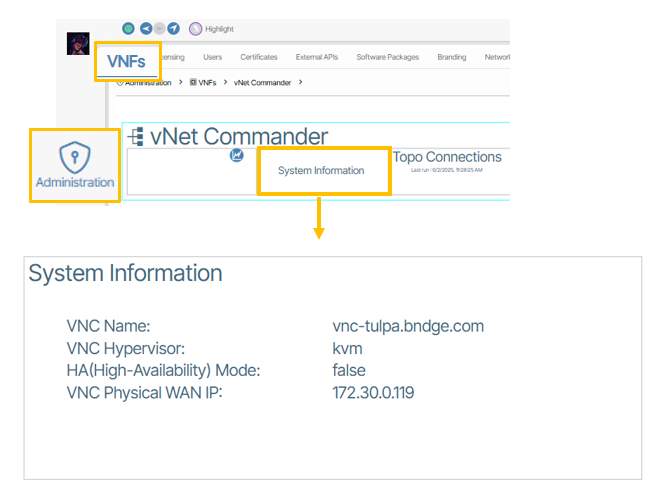

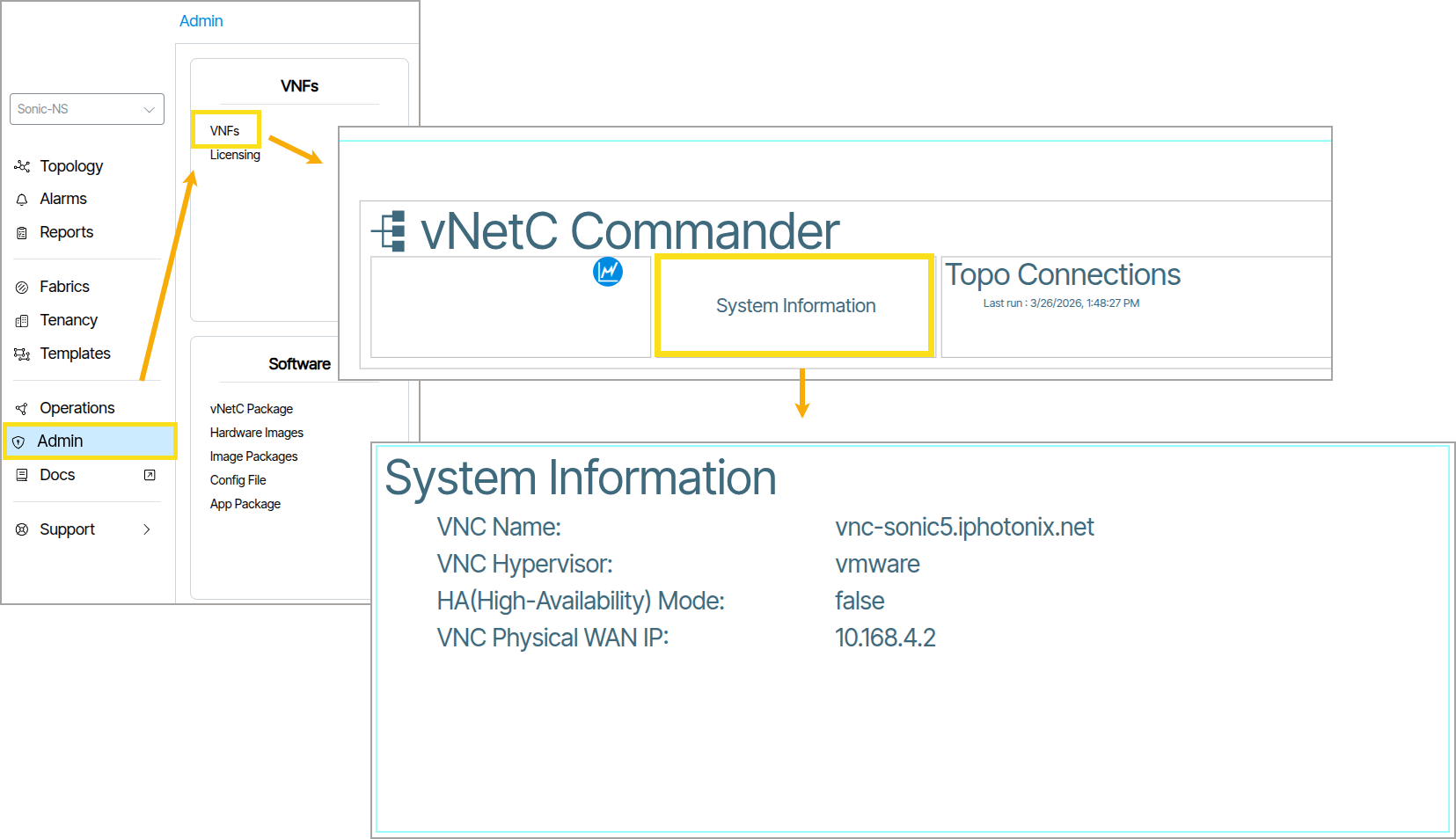

Configure vNetCs for HA mode🔗

For both vnETCs, on the console, edit /etc/rc.conf with the appropriate vNETC specific IP addresses:

  • Change the vtnet1 IP to VNETC1_XCONN_IP
  • Add an entry: ifconfig_vtnet3="inet VNETC1_BACK_IP "

Create the file "/var/ns/arg_defaults/ns_httpd.conf" and add:

append_allowed = 'FQDN'

If the GUI will be accessed via an IP address rather than an FQDN, use:

append_allowed = 'FQDN,FLOATING_IP'

Replicate the host keys from vNetC1 to vNetC2, eg from vNetC1:

rsync -ai /etc/ssh/ssh_host_* VNETC2_IP:/etc/ssh/

Create an ssh key for connections between vNetCs, on each vNetc:

ssh-keygen -t ed25519
(Hit enter to bypass default location and passphrase)

on each vnetc, copy the generated publickey file ~/.ssh/id_ed25519.pub to the other vnetc:

On vNetC1:

rsync -ai ~/.ssh/id_ed25519.pub VNETC2_IP:/tmp/

On vNetC2:

rsync -ai ~/.ssh/id_ed25519.pub VNETC1_IP:/tmp/

Then, on each vnetc, authorize that key with:

cat ~/.ssh/id_ed25519.pub > /tmp/id_ed25519.pub
ns_authkeys -L /tmp/id_ed25519.pub
This ensures both systems have both keys

On vNetC 1, create /var/ns/ha/failover.conf with:

:include "/usr/ns/etc/failover.conf"
enabled = 1
floating_address = FLOATING_IP
xconnect_address = VNETC1_XCONN_IP
peer_xconnect_address = VNETC2_XCONN_IP
peer_mgmt_address = VNETC2_IP
verification_address = VERIFICATION_IP
sdlc_mgmt_address = SDLC1_BACK_IP

On vNetC 2, create /var/ns/ha/failover.conf with:

:include "/usr/ns/etc/failover.conf"
enabled = 1
floating_address = FLOATING_IP
xconnect_address = VNETC2_XCONN_IP
peer_xconnect_address = VNETC1_XCONN_IP
peer_mgmt_address = VNETC1_IP
verification_address = VERIFICATION_IP
sdlc_mgmt_address = SDLC2_BACK_IP

Other variables that alter the default behavior are as follows. Where values are shown, these are already used as the defaults and the variables do not need to be included in /var/ns/ha/failover.conf.

Settle Timing

This specifies the period in seconds before state change actions are taken after decisions have been reached.

A rule-of-thumb is to make the settle period be the reboot time for the server hardware plus 60 seconds.

settle = 300

Probe Cycle

This is the cycle period for probing the peer. Probing is low-overhead so can be quite short, but should be more than 3 seconds

probe_cycle = 10

Replication Period

How frequently in seconds to run replication of low priority data from the active to the inactive node. This data include device statistics, non-database configurations like NTP and resolver settings, and forensic application data for ns_bizd, etc.

replication_period = 1800

Replication Delay

Delay after a failover before replication will be performed.

replication_delay = 300

Manual Override

Manual_override should be empty for normal operations. If true, this system will become active, if false this system will become inactive. If this setting is made on just one node, the other node will transition to the appropriate state, assuming communications with this node are operational. (This variable is also administered via ns_admin menu)

manual_override =

Slave Autoconversion

If slave_auto_conversion is true, a node will be automatically converted to a postgres slave once both the run state and postgres state have been stable for slave_transition_delay seconds.

slave_auto_conversion = true

Slave Transition Delay

Slave_transition_delay sets how long to wait after a node becomes inactive before attempts a slave conversion.

slave_transition_delay = 360

Reboot both vNETCs

Configure SDLCs for HA mode🔗

Use these steps to configure both of the SDLCs via the admin CLI:

  • Use admin/network/backdoor to set SDLC1_BACK_IP mask 255.255.255.x

  • Use admin/security/keys/get - to set an authorized key, taken from /var/ns/ha/sdlc_ha_key.pub in the vNETC

 Main/ administration/ Security Base Menu# keys

 Main/ administration/ Security Base Menu/ SSH Keys Base Menu# get -

Enter file (Press enter and <CTRL-D> when done):
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIHHrFWYS5snSDRNV6mN6rZkWMn1Xp3CIXgn4x5HvSJyP root@verity.be-net.com


Authorized keys 'authorized_keys' copied to '/home/admin/.ssh/authorized_keys'

 Main/ administration/ Security Base Menu/ SSH Keys Base Menu#
  • Use admin/redundancy/enable to enable redundancy mode

Reboot the SDLC. When it reboots it will be in Standby mode. If this is the first SDLC, shut it down after the reboot until the second SDLC is also in HA mode.

Both SDLCs are set to standby mode waiting for the vNETC to bring online the active SDLC.

As a final check, log into both vNETs and run ns_info to ensure that database replication is active on both sides.

Upgrading an HA site🔗

HA sites must be upgraded in a specific sequence, which should be completely without long delays between steps.

This is because during the upgrade, schema changes to the Postgres database may be involved, and these are immediately replicated to the inactive node, which means the BE software on the inactive node may be inconsistent with the Postgres schema.

In addition, it is not possible to do an offline upgrade to the inactive node because upgrades require write-access to Postgres.

Upgrade Steps🔗

  • Log into the vNetC console of the inactive node and run ns_admin and "Set Manual Override" to set this node to be inactive. This prevents a failover during the upgrade procedure.
  • Upgrade the active node via the Administration -> Software Packages page
  • After the upgrade has completed, confirm the system has been left in read-only mode. The topology page should display a tan pin-wheel icon. Leave the system in read-only mode.

  • Use ns_admin on the inactive node to reenable failover (ie Manual Override OFF).

  • Log into the vNetC console of the active node and run ns_admin

    • Choose "High Availability Configuration" and "Replicate Config and Statistics"
    • When that completes, choose "Set Manual Override" and set it to False and "Save Settings". This will trigger a failover to the inactive node.
  • Once the GUI is accessible on this node, perform the upgrade in the normal way via Administration -> Software Packages. If necessary, delete the current package, re-upload it, and re-deploy it.
  • Once the upgrade has completed, back on the console of the now-inactive node, use ns_admin to:
    • Choose "Set Posgress to Slave Mode"
    • Clear the "Set Manual Override" and "Save Settings" to enable failover
  • After verifying any configuration changes, the system can be returned to read-write mode

Recovering an HA site from POSTGRES backup🔗

When recovering an HA site from a backup, there are extra considerations:

  1. PostgreSQL replication must be manually restarted after the restore
  2. If the backup came from the other node, the license restored will be for that node, so the correct license must be reapplied.

Restore steps on the Active vNetC🔗

 service ns_init stop
 ns_restore -b /tmp/yyyymmddThhmmss.dddZ.tbz
 ns_ha_postgres -et master
 service ns_init start

Note that if the backup file was copied from another system, add "-s config" to the ns_restore command to avoid loading license and network configuration from that system, ie:

 ns_restore -b /tmp/yyyymmddThhmmss.dddZ.tbz -s config

Restore steps on the Inactive vNetC🔗

To re-enable POSTGRES replication

ns_ha_postgres -et slave

This re-enables PostgeSQL replication.
