Ethernet Port Settings (Eth-Port Settings)

Eth-Port Settings allow the operator to define settings specific to a port related to Layer-1 and Layer-2 features such as port speed, speed/duplex negotiation, and Power-over-Ethernet (PoE).

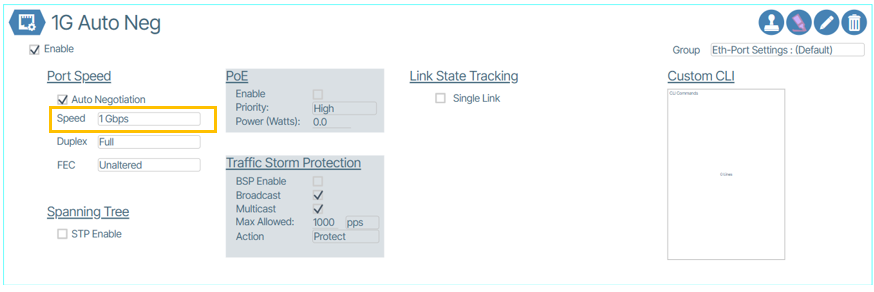

The following figure shows the detail within an Ethernet Port Settings dialog box:

Create an Eth-Port Setting

1. Navigate to the Eth-Port Settings tile by clicking Templates and from the Templates tab double-click Eth-Port-Settings.
2. Create an Eth-Port Setting instance by clicking the Add button ().
3. In the prompt that appears, enter a name for the Eth-Port Setting.
4. Apply desired settings.
5. Enable the settings by clicking the Enable checkbox.

Apply an Eth-Port Setting

1. Determine the port you wish to apply the Eth-Port Setting on.

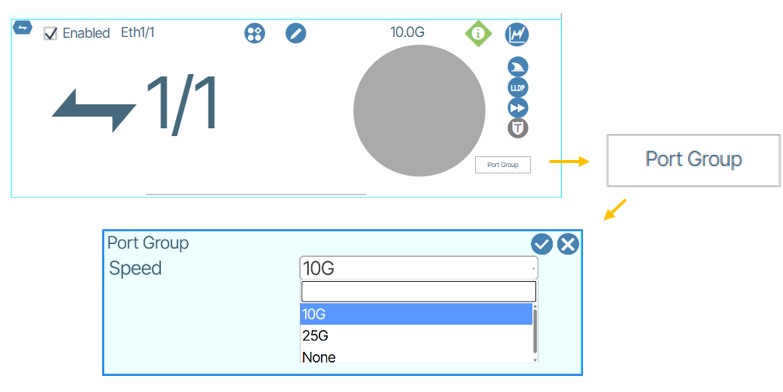

2. Open the port editing window and assign the Eth-Port Setting in the right most dropdown menu.
