Badges

Badges group devices visually. Administrators assign each badge a name, a color, and a number.

Creating and Assigning Badges🔗

1. Double-click Topology and click Network View. Enable focus of a selected device.

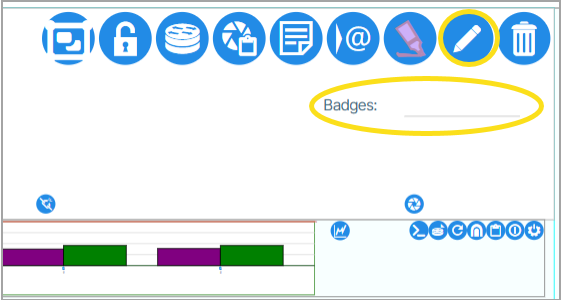

2. Click the Open for Edit button (or double-click the Badges field).

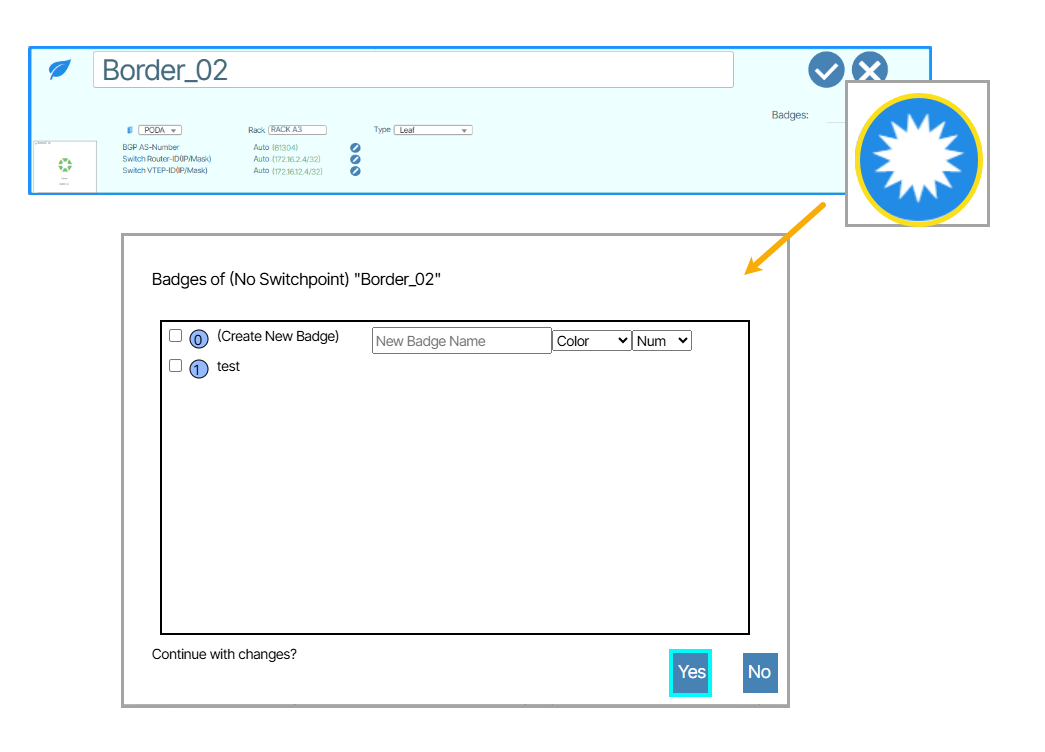

3. Click set badges icon.
4. Enable the check-box next to the phrase Create New Badge.
5. Set a Name, Color and Num for the badge.
6. Click Yes to create the badge.
