Traffic Mirrors🔗
Traffic Mirror is a network monitoring tool within Verity that copies traffic from a source port to a destination port. Administrators then connect a PC equipped with Wireshark or other monitoring device to the destination port to analyze the copied traffic.
The Device -> Traffic Mirrors window provides a Report of all Traffic Mirrors.
Creating a Traffic Mirror🔗

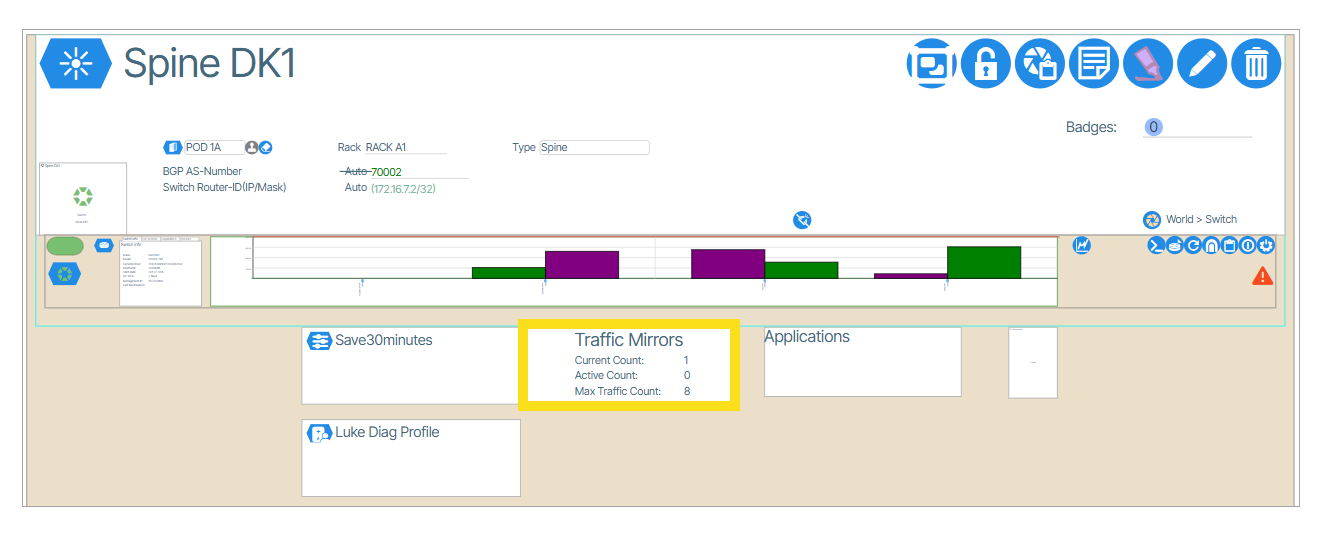

In Topology -> Newtwork View double-click the Traffic Mirrors tile on the switch (

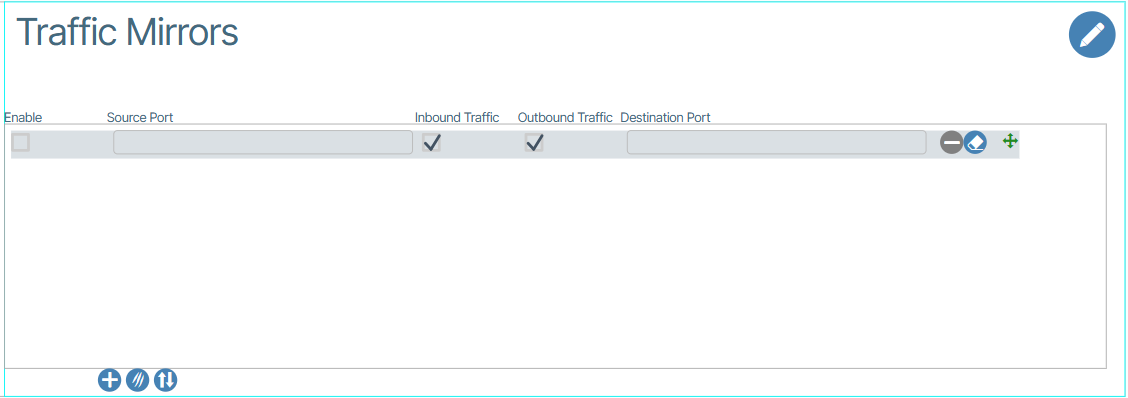

). This opens the Traffic Mirror window.
To add a new Traffic Mirror, click the Add row to this Switchpoint button (
) followed by entering the Source and Destination switch ports, selecting ingress and/or egress traffic, then enable row(s).

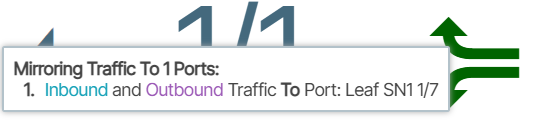

Port Traffic Mirroring Indicators🔗
These indicators tell users if a port is used in a traffic mirroring configuration.
Hovering over the indicator provides more information.
