Prerequisites

Each system requires a management subnet that can support 5 system IP addresses as well as 3 IP addresses per managed switch. The breakdown is as follows:

IP address Allocations for Management Component Allocation
Verity System components vNETC LAN side, SDLC, ACS, GuiA, Satori 5 Static Addresses
Managed Switches Verity Switch Controller 1 Dynamic Address per switch
Managed Switches Switch in ZTP Process 1 Dynamic Address per switch
Managed Switches Switch post ZTP Process 1 Static Address per switch
  1. vNetC
    1. Resolvable, fully qualified domain name
    2. Static IP address, gateway, DNS servers
    3. Valid Verity license
  2. SDLC
    1. IP addressing per table above. This must be routable to the vNetC!
  3. Controllers (within SDLC)
    1. IP Addressing per table above. The diagram above shows that the controllers are bridged to NIC 2 of the SDLC. The IP must be on the same VLAN/subnet as the SDLC!

  4. Satori

    1. IP addressing per table above. This must be routable to the vNetC!

  5. Routable or switched network between Verity components and managed switching devices

    1. If using a router or firewall between Verity and the switches, the following ports must be allowed to pass.
      1. Port 8080 for gNMI
      2. Port 80 - HTTP
      3. Port 443 - HTTPS
      4. Port 22 - SSH
      5. Port 161 - SNMP
      6. Port 6343 - sFlow

Hypervisor-Specific Network Configuration (Required)🔗

VMware🔗

VMware systems require this additional network configuration:

  • ESXi
    1. Compute resources meeting Verity requirements based on the number of switches being managed. See Resource documentation for computing CPU and memory needs.
    2. Virtual Switch
      1. The vNetC and SDLC should be on the same virtual switch in ESXi or at minimum they must be routable.

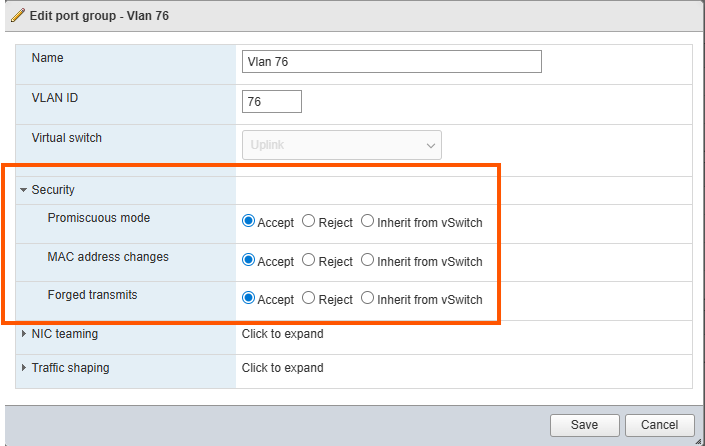

      2. Your system requires promiscuous mode to be set to enabled.

KVM and Proxmox🔗

KVM and Proxmox systems require this additional network configuration:

  • KVM
    1. Compute resources meeting Verity requirements based on the number of switches being managed. See Resource documentation for computing CPU and memory needs.
    2. Virtual Switch
      1. The vNetC, SDLC and Satori should be on the same bridge or at minimum they must be routable.

Required Files🔗

Obtain the following files from BE Networks:

VMware Required Files🔗

Description Filename Example File Type Notes
vNetC VM Image vNetC-x_x_x_x.ova VMware OVA Resources including vCPU and memory should be adjusted based on iVN resource needs documentation. Networking will need to be altered to the correct virtual switch names used in the server
vNetC “core” Upgrade core-x_x_x_x- full.tar tarball vNetC needs to be updated via GUI SD-Admin immediately after configuration and boot
SDLC VM Image SDLC-x_x_x_x.ova VMware OVA Resources including vCPU and memory should be adjusted based on iVN resource needs documentation. Networking will need to be altered to the correct virtual switch names used in the server
SDLC Binary Firmware Upgrade firmware-x_x_x_x.tar tarball SDLC should be upgraded via web page immediately after configuration and boot
Satori VM Image satori_x.x.x.ova VMware OVA Resources including vCPU and memory should be adjusted based on iVN resource needs documentation. Networking will need to be altered to the correct virtual switch names used in the server
Satori Software Upgrade satori_x.x.x.tar tarball Satori needs to be updated via GUI SD-Admin immediately after configuration and boot
License license.cms or sitexxxxx.tar License file Is uploaded using GUI
Firmware Upgrade Package firmware-x_x_x_x.tar Binary SDLC should be upgraded via web page immediately after configuration and boot

KVM & Proxmox Required Files🔗

Description Filename Example File Type Notes
vNetC VM Image vNetC-x_x_x_x.qcow2 KVM qcow Resources including vCPU and memory should be adjusted based on resource needs documentation. Networking will need to be altered to the correct bridge names used in the server
vNetC “core” Upgrade core-x_x_x_x- full.tar Tarball vNetC needs to be updated via UI SD-Admin immediately after configuration and boot
SDLC VM Image SDLC-x_x_x_x.qcow2 KVM qcow Resources including vCPU and memory should be adjusted based on resource needs documentation. Networking will need to be altered to the correct virtual switch names used in the server
Firmware Upgrade Package firmware-x_x_x_x.tar Tarball SDLC should be upgraded via system upgrader immediately after configuration and boot
Satori VM Image satori_x.x.x.qcow2 KVM qcow Resources including vCPU and memory should be adjusted based on resource needs documentation. Networking will need to be altered to the correct bridge names used in the server
Satori Upgrade Package satori_x.x.x.tar Tarball Satori should be updated via UI AS-Admin immediately after configuration and boot
License license.cms or sitexxxxx.tar License file Is uploaded using UI
XML Parameters vnetc.xml, SDLC.xml and satori.xml xml Default files are provided and are edited during the installation process. There are 4 available vNETC xml files covering the use cases of single or multiple NICs along with High Availability options
