Reports🔗

Reports are tabular views of provisioned objects and detected elements within the network. Reports can be easily filtered and customized to create individual operator-specific reporting on any element in Verity. Reports also support bulk actions applied to multiple selected objects.

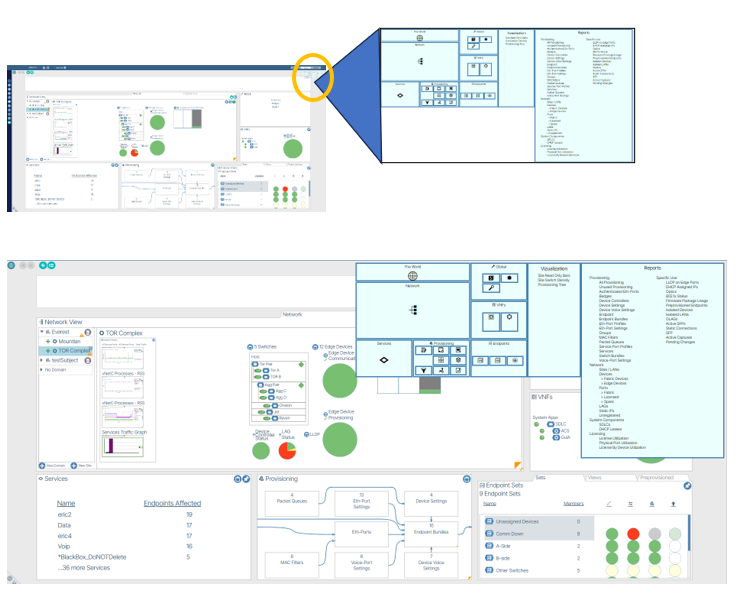

Reports are accessed from the Main Menu Reports icon ().

In addition, throughout all the navigation panes, usually on the top right of each sub panel, the UI displays a report icon () .

Clicking on the report icon takes you to a text-based list that can be sorted, highlighted, exported to CSV, and navigated from. Also, certain bulk commands are supported from the reports. Those functions are launched by selecting rows in the report and clicking the icons at the top.

Applying Actions to Report Items🔗

To apply actions to Report items, you select the item(s) you want to affect, click the Actions button, and choose the desired action. All selected Report items are affected by the change.

Report Filtering using Regex🔗

To apply actions to specific entries within Report, you select the item(s) you want to using simple drop down selections or regular expressions (regex).

Regular expressions can be selected by clicking on the filter type selection if shown at the top of the column.

Regex format is aligned with Javascript standards and more information can be found here:

https://developer.mozilla.org/en-US/docs/Web/JavaScript/Guide/Regular_expressions#using_regular_expressions_in_javascript

Overridden Provisioning🔗

This Report allows you to see all the provisioning changes you have made and confirm or revert them without being on a specific object.

Report Slice Views🔗

Report Slice View creates a pie graph view of the column in the report. To view the graph click the slice button
